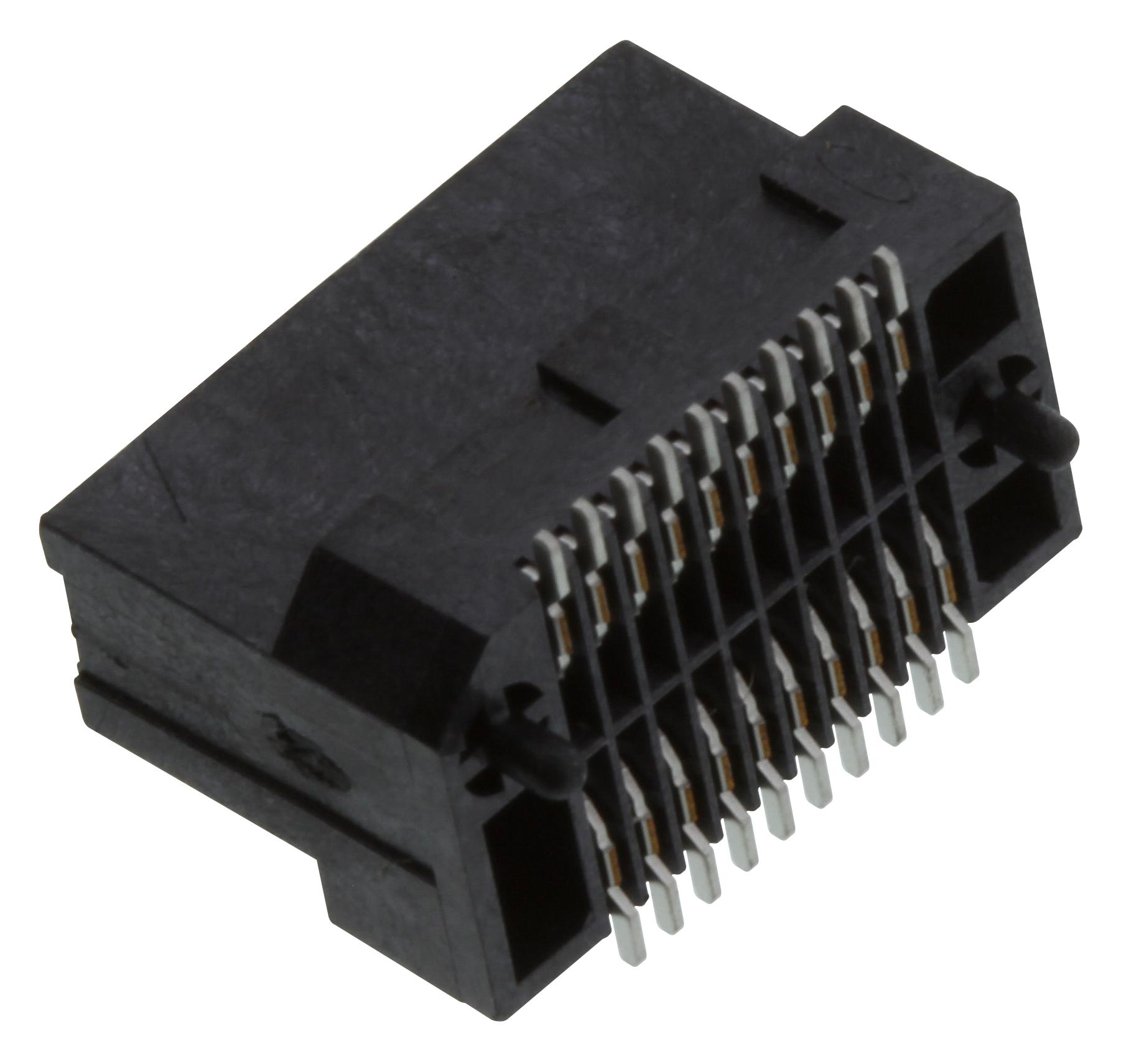

SAMTEC MEC811002LDVA High-Frequency Signal Connector
The MEC8 series connectors are high-performance, single-ended and differential pair signaling connectors designed for industrial and electronic applications. Made with phosphor bronze contacts plated with Au or Sn over Ni, they operate within -55°C to +125°C and support up to 185 VA. These connectors feature a black LCP insulator, mating with 1.60 mm thick cards, and have an insertion depth of 4.22 mm to 5.66 mm. They are suitable for high-frequency signals up to 7.0 GHz/14 Gbps, ensuring reliable performance in demanding environments.
SAMTEC MEC811002LDVA High-Frequency Signal Connector Specifications:
- Insulator Material: Black LCP
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: 4.22 mm to 5.66 mm
- Current Rating: 4.8 A per pin (6 adjacent pins powered)
- Voltage Rating: 185 VA
- Stack Height: 8.65 mm
- Frequency Performance: 7.0 GHz/14 Gbps
- Lead Count Options: Various configurations available
- Supported Card Thickness: 1.60 mm
- Connector Style: Straight, right angle, edge mount
- Certifications: Compliant with industry standards
- Material: Phosphor Bronze with Gold or Sn plating
- Application: High-frequency data transmission, industrial electronics
Buy the Samtec MEC8–Reliable High-Frequency Connectors for Industrial Applications
Order the Samtec MEC8 series connectors today and enjoy seamless online purchasing. Designed for high-frequency and high-reliability applications, these connectors support up to 7.0 GHz/14 Gbps signals, perfect for demanding industrial electronics. With various lead configurations, card thickness options, and robust materials like phosphor bronze contacts with gold or tin plating, they ensure lasting performance. Easy to install with multiple mounting options and certified compliance, these connectors are the ideal choice to enhance your electronic systems' reliability and signal quality. Buy now for fast, secure delivery and technical support.
Buy Samtec MEC8 series connectors now and experience unmatched high-frequency performance and reliable signal integrity in your industrial and electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC MEC811002LDVA?
You can click on the BUY or RFQ button to purchase MEC811002LDVA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MEC811002LDVA?
You can download the MEC811002LDVA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MEC811002LDVA?
SAMTEC
