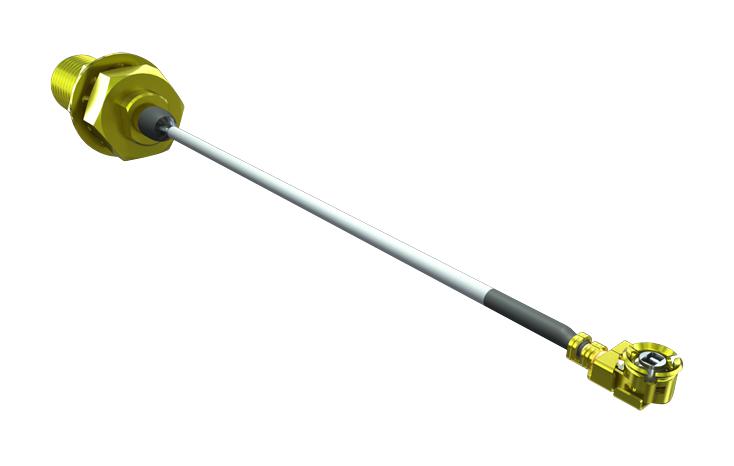

SAMTEC MH113MH1RP01BJ10100 RF Bulkhead Connector
The MH113 series connector is a micro high-frequency RF, UHF, or SMA bulkhead connector designed for precise and reliable signal transmission at high frequencies. Featuring gold-plated phosphor bronze outer contacts and silver-plated copper conductors, it supports a frequency range up to 6 GHz and a maximum voltage of 170 V. Its construction includes FEP insulators, tinned copper shields, and a flexible design suitable for tight spaces. Designed for use in high-frequency applications, it offers low impedance, excellent shielding, and RoHS compliance, making it ideal for RF testing, communication equipment, and embedded systems.
SAMTEC MH113MH1RP01BJ10100 RF Bulkhead Connector Specifications:
- Outer Contact Material: Au plated Phosphor Bronze
- Center Contact Material: Silver Plated Copper
- Insulator Material: FEP
- Operating Temperature: -40°C to +90°C
- Voltage Rating: 170 V max
- Impedance: 50 Ω
- Capacitance: 95 pF/meter
- Frequency Range: up to 6 GHz
- Conductor Size: 32 AWG, 1.13 mm diameter
- Conductor Resistance: max 0.60 Ω/meter
- Jacket Material: FEP
- Jacket Diameter: 1.13 mm
- Bend Radius: 6.8 mm
- RoHS Compliant: Yes
- End Options: SMA straight bulkhead jack, sealed bulkhead, reversed polarity, and other configurations
Buy the Samtec MH113– Reliable RF Bulkhead Connectors for Industrial Applications
Enhance your high-frequency applications with the RF bulkhead connector from Samtec, supporting frequencies up to 6 GHz, low VSWR, and durable construction. Designed for easy integration in communication, RF testing, and embedded systems, this connector offers exceptional shielding, RoHS compliance, and a wide temperature range. Purchase online today to ensure your projects benefit from reliable signal integrity, robust construction, and compatibility with various end options, optimizing your system with a trusted and high-performance RF connector.
Buy Samtec MH113 series connectors now and experience unmatched reliability and high-frequency performance for your RF and communication projects.
Frequently Asked Questions
Where can I buy SAMTEC MH113MH1RP01BJ10100?
You can click on the BUY or RFQ button to purchase MH113MH1RP01BJ10100 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MH113MH1RP01BJ10100?
You can download the MH113MH1RP01BJ10100 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MH113MH1RP01BJ10100?
SAMTEC
