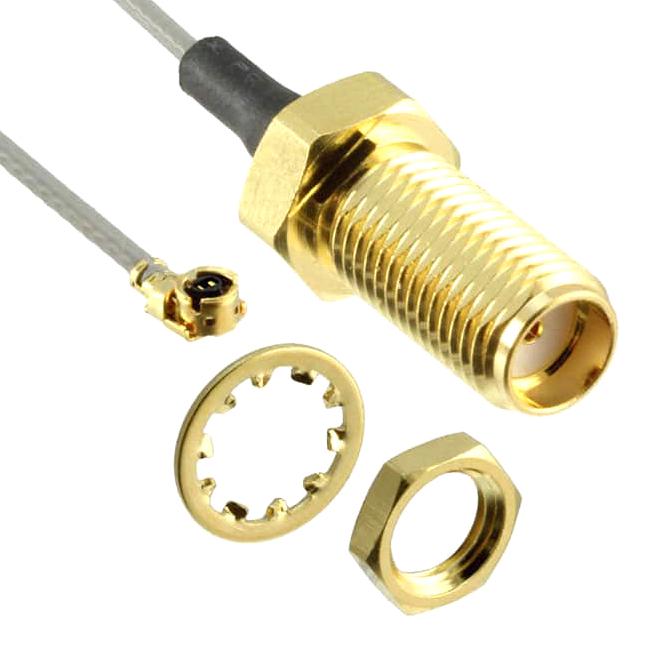

SAMTEC MH113MH1RP01BJ10150 RF Cable Assembly
The MHF cable assemblies, available in 0.81 mm and 1.13 mm diameters, feature gold-plated phosphor bronze, BeCu, and copper conductors. They are designed for high-frequency RF signal applications, with exceptional electrical performance, low attenuation, and flexible bend radii. With insulated and shielded construction using PTFE, FEP, and PFA materials, these cables withstand temperatures from -40°C to +90°C and voltage ratings up to 170V. Ideal for professional RF, communications, and test equipment connections, these assemblies ensure reliable signal integrity in demanding environments.
SAMTEC MH113MH1RP01BJ10150 RF Cable Assembly Specifications:
- Outer Diameter: 0.81 mm and 1.13 mm
- Conductor Material: Silver Plated Copper
- Conductor Resistance: Max 7.40 Ω/km (0.81 mm), Max 0.60 Ω/m (1.13 mm)
- Capacitance: 100 pF/m (0.81 mm), 95 pF/m (1.13 mm)
- Maximum Attenuation: 3.1 dB @ 1 GHz (0.81 mm), 2 dB @ 1 GHz (1.13 mm)
- Insulator Material: PTFE (0.81 mm), FEP (1.13 mm)
- Jacket Material: PFA (0.81 mm), FEP (1.13 mm)
- Jacket Temperature Rating: -40°C to +90°C
- Bend Radius: 5.0 mm (0.81 mm), 6.8 mm (1.13 mm)
- Voltage Rating: 170 V max.
- Operating Temperature: CBC to Pac
- Shield Material: Tinned Copper
- Center Contact Plating: Au 0.1 um (MHF1), Au 0.25 um (MHF4)
- End Options include SMA Bulkhead Jack, Reversed Polarity, and Inline Connectors
- Cable Length Options: 30 mm to 300 mm, custom lengths available
Buy the Buy High Frequency RF Cable Assemblies Part Number MH113 Online
Order the high-quality RF cable assembly MH113 online today to ensure reliable high-frequency signal transmission in your professional communications and testing setups. These assemblies feature gold-plated conductors, PTFE and PFA insulation materials for optimal signal clarity and temperature resilience. Available in multiple lengths, they are designed for demanding RF applications, offering low attenuation, flexible bend radii, and robust construction. Secure your connection now for superior performance in any environment—trusted quality with easy online purchase convenience.
Buy High Frequency RF Cable Assemblies part number MH113 now and experience unmatched signal integrity, flexible installation, and reliable high-frequency performance.
Frequently Asked Questions
Where can I buy SAMTEC MH113MH1RP01BJ10150?
You can click on the BUY or RFQ button to purchase MH113MH1RP01BJ10150 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MH113MH1RP01BJ10150?
You can download the MH113MH1RP01BJ10150 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MH113MH1RP01BJ10150?
SAMTEC
