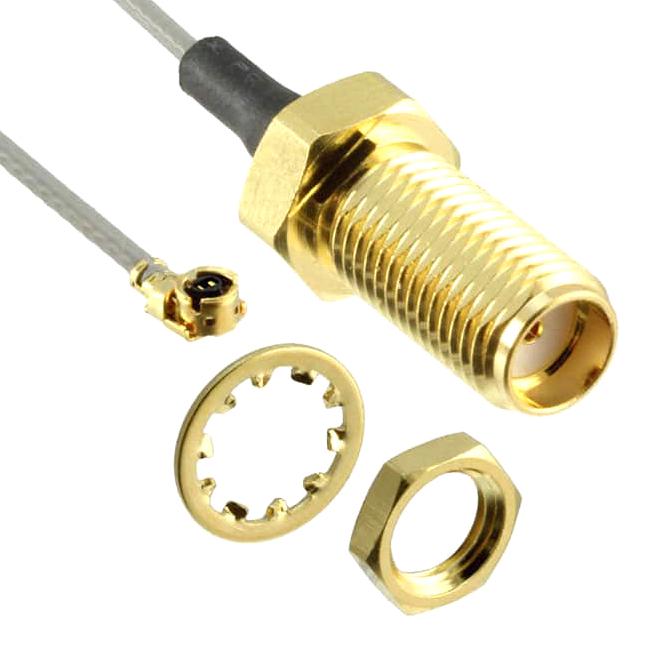

SAMTEC MH113MH1RP01BJ10300 High Frequency RF Cable
The product features high-frequency RF cables with gold-plated phosphor bronze contacts, specialized insulators such as PBT and PTFE, and excellent electrical performance. Designed for precise signal transmission, these cables are available in two sizes: 0.81 mm and 1.13 mm, with low attenuation at 1 GHz, robust conductivity, and durable jacket materials like PFA and FEP. Suitable for applications requiring high stability, low loss, and reliable connection integrity, these cables comply with industry standards for high-frequency signal transmission and are compatible with various connector types, including SMA and micro high-frequency options.
SAMTEC MH113MH1RP01BJ10300 High Frequency RF Cable Specifications:
- Conductor Material: Silver Plated Copper
- Insulator Material: PBT (MHX), PTFE (SMA), FEP
- Outer Contact Material: Au plated Phosphor Bronze
- Center Contact Material: Au plated Phosphor Bronze or BeCu (SMA)
- Conductor Size: 0.81 mm (36 AWG), 1.13 mm
- Conductor Resistance: 7.40 Qvimeter max (0.81 mm), 0.60 Qvimeter max (1.13 mm)
- Capacitance: 100 pF/meter (0.81 mm), 95 pF/meter (1.13 mm)
- Max Attenuation: 3.1 dB @ 1 GHz (0.81 mm), 2 dB @ 1 GHz (1.13 mm)
- Jacket Material: PFA (0.81 mm), FEP (1.13 mm)
- Jacket Diameter: 0.81 mm (0.032 inch), 1.13 mm (0.045 inch)
- Bend Radius: 5.0 mm (0.81 mm), 6.8 mm (1.13 mm)
- Jacket Temperature Rating: -40°C to +90°C
- Operating Voltage: 170 Vmax
- Dielectric Withstanding Voltage: 200 V rms
- Shield Material: Tinned Copper
Buy the Buy Samtec High Frequency RF Cables Part Number MH113 Online
Purchase Samtec high frequency RF cables including models MH113 and MH081 online for reliable high-speed signal transmission. These cables feature gold-plated contacts, low attenuation, and durable jackets suitable for demanding applications. Whether for professional test setups, industrial equipment, or communication systems, these assemblies provide excellent electrical performance, consistent quality, and compatibility with SMA and micro high-frequency connectors. Enjoy swift delivery and expert support when you buy these industry-grade RF cables online, ensuring your projects stay on schedule.
Get Samtec high-frequency RF cables including MH113 today—designed for precise signal transmission and long-lasting durability.
