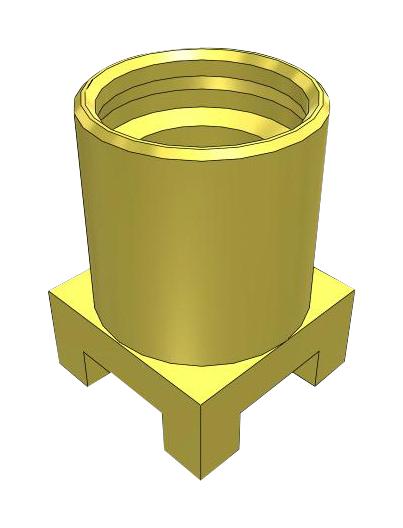

SAMTEC MMCXJPHRASM1 MMCX Jack Plug
The SAMTEC MMCX-J-P-H-RA-SM1 is a micro-miniature coaxial (MMCX) jack plug designed for high-frequency applications. It is part of the MMCX series, known for its compact size and reliable performance. This connector features a right-angle orientation and surface mount termination, making it ideal for PCB applications where space is limited. Constructed with a brass pin and shell, and PTFE insulator, it offers excellent durability and electrical characteristics. The gold-plated center contact ensures low signal loss and corrosion resistance. It is RoHS compliant and suitable for operating temperatures ranging from -65°C to +125°C. Ideal for use in wireless communication devices, instrumentation, and other RF applications.
SAMTEC MMCXJPHRASM1 MMCX Jack Plug Specifications:
- Operating Temp Range: -65 °C to +125 °C
- Impedance: 50 W
- Contact Material: BeCu
- Insulator Material: PTFE
- Pin and Shell Material: Brass
- Dielectric Withstanding Voltage: 500 Vrms, 50 Hz
- Dielectric Working Voltage: 170 Vrms, 50Hz
- Frequency Range: 0~6 GHz
- Plating: 3 µ” Gold (center contact), 0.08 µm Gold (outer contact)
- Mount Type: PCB, Surface Mount, Right-angle, Through-hole, Edge Mount
- Lead-Free Solderable: Yes
Buy the MMCX-J-P-H-RA-SM1 SAMTEC MMCX Jack Plug | myMectronic
Securely purchase the SAMTEC MMCX-J-P-H-RA-SM1 online and ensure reliable connectivity for your projects.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC MMCXJPHRASM1?
You can click on the BUY or RFQ button to purchase MMCXJPHRASM1 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MMCXJPHRASM1?
You can download the MMCXJPHRASM1 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MMCXJPHRASM1?
SAMTEC
