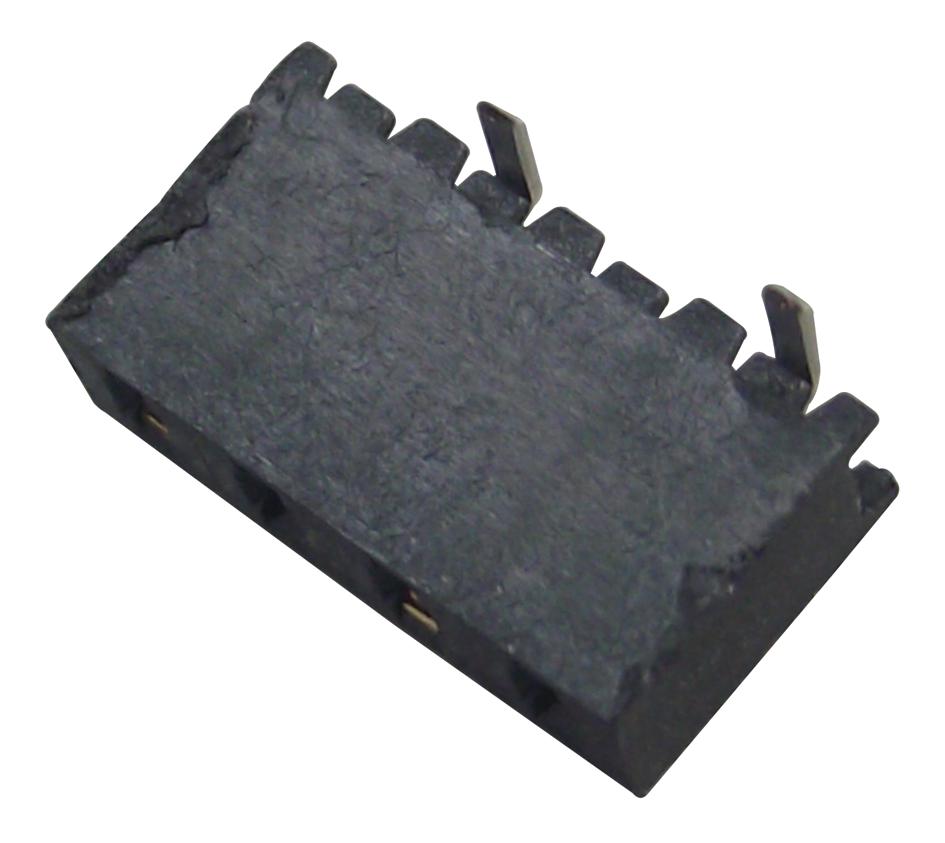

SAMTEC MMS10402LSV Tiger Claw Socket Strips
The MMS series from Samtec features Tiger Claw socket strips ideal for surface mounting in industrial and electronic applications. These connectors support 2 to 40 contacts per row with a 2mm pitch, ensuring reliable, high-performance connections. Made from black liquid crystal polymer insulators and phosphor bronze contacts, they are gold or tin-plated for durability. Operating temperatures range from -55°C to 125°C, with contact resistance of 10 milliohms. UL and CSA recognized, these socket strips guarantee robust, secure connections for demanding environments.
SAMTEC MMS10402LSV Tiger Claw Socket Strips Specifications:
- Pitch spacing: 2mm
- Contacts per row: 2 to 40
- Insulator Material: Liquid Crystal Polymer (Black)
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin over Ni (50μm)
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Depth: 2.13mm (minimum), 4.82mm (pass-through)
- Current Rating: 3.9A per pin
- Lead-Free Soldering: Yes
- UL and CSA Recognition: Yes
- Compatible with series: TMMH, TMM, MTMM, MMT, TW, LTMM, ZLTMM, TCMD, TSH
Buy the Samtec Series Tiger Claw Socket Strips: MMS10402LSV
Purchase the Samtec Tiger Claw socket strips online for dependable surface-mount connections supporting 2 to 40 contacts. Crafted with high-quality phosphor bronze contacts and liquid crystal polymer insulators, these connectors can withstand temperatures from -55°C to 125°C. Gold or tin plating enhances durability, while UL and CSA certifications ensure safety and compliance. These highly versatile socket strips are ideal for demanding industrial applications, providing secure, robust connections that mean reliable performance in your electronic assemblies. Order now to upgrade your projects with trusted quality.
Order your Samtec Series MMS10402LSV connector strip today and ensure reliable, secure connections for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC MMS10402LSV?
You can click on the BUY or RFQ button to purchase MMS10402LSV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MMS10402LSV?
You can download the MMS10402LSV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MMS10402LSV?
SAMTEC
