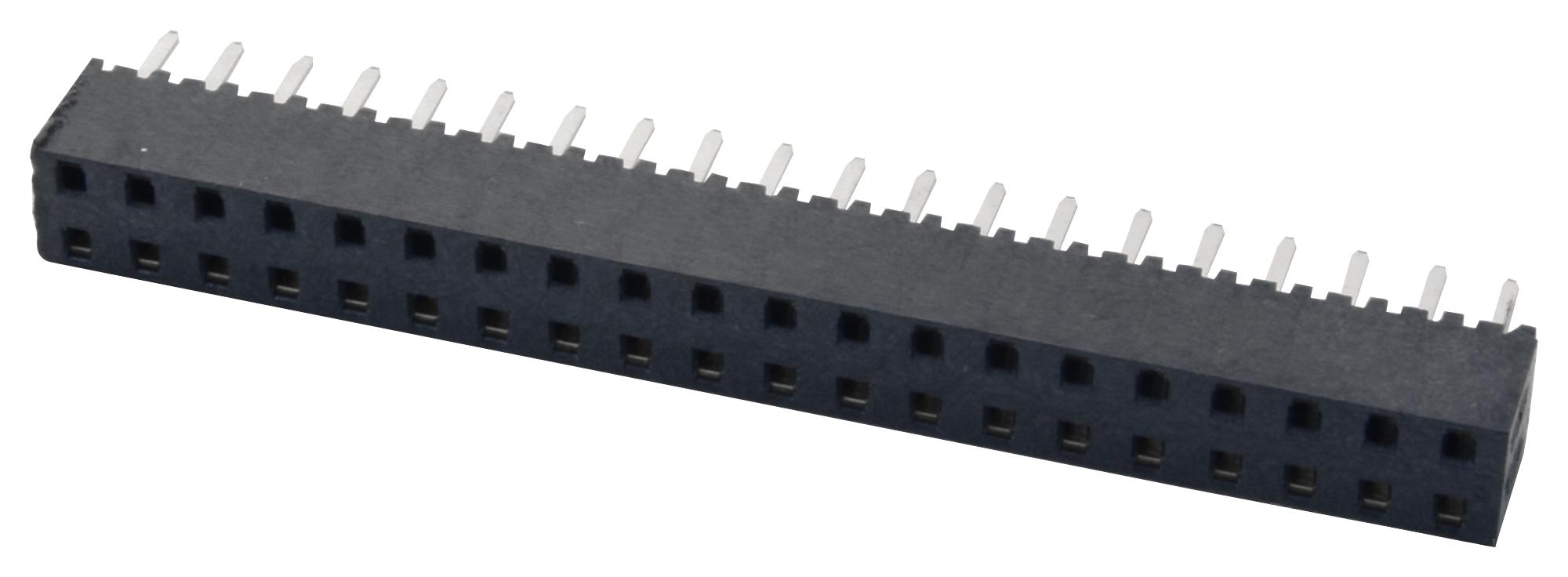

SAMTEC MMS12001LDV Tiger Claw Socket Strip
The MMS series from Samtec offers Tiger Claw socket strips for through-hole mounting, compatible with various Samtec connectors. Made with black liquid crystal polymer insulators and phosphor bronze contacts plated with 10 microinches of gold, these socket strips feature a 2mm pitch, with options up to 40 contacts per row. Suitable for industrial and electronic applications, they operate from -55°C to 125°C, meeting UL and CSA standards. Designed for reliability, these double-row vertical mounting sockets ensure secure connections for high-performance electronic assemblies.
SAMTEC MMS12001LDV Tiger Claw Socket Strip Specifications:
- Insulator Material: Black liquid crystal polymer (LCP)
- Contact Material: Phosphor bronze
- Plating: 10 microinches of gold over copper plating
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 10 mΩ max
- Current Rating: 2A at 80°C ambient
- Insertion Depth: 2.13mm to 2.79mm
- RoHS Compliant: Yes
- Mounting Type: Through-hole, vertical mounting
- Pitch: 2mm
- Number of Contacts: Up to 40 per row
- Standards: UL E111594, CSA 090871
Buy the Buy Samtec Tiger Claw Socket Strips Part Number MMS12001LDV Online
Discover the high-quality Tiger Claw socket strips from Samtec, designed for through-hole mounting with a 2mm pitch, platinum gold-plated contacts, and operating temperature up to 125°C. These reliable, RoHS compliant socket strips are perfect for industrial, electronics, and automation applications. Easy to install with a robust insulator made of black liquid crystal polymer and phosphor bronze contacts, they offer excellent electrical performance and durability. Order online today to enhance your electronic assemblies with industry-leading connection technology.
Buy Samtec MMS12001LDV now and ensure secure, reliable connections with high-temperature rated socket strips suitable for industrial use.
