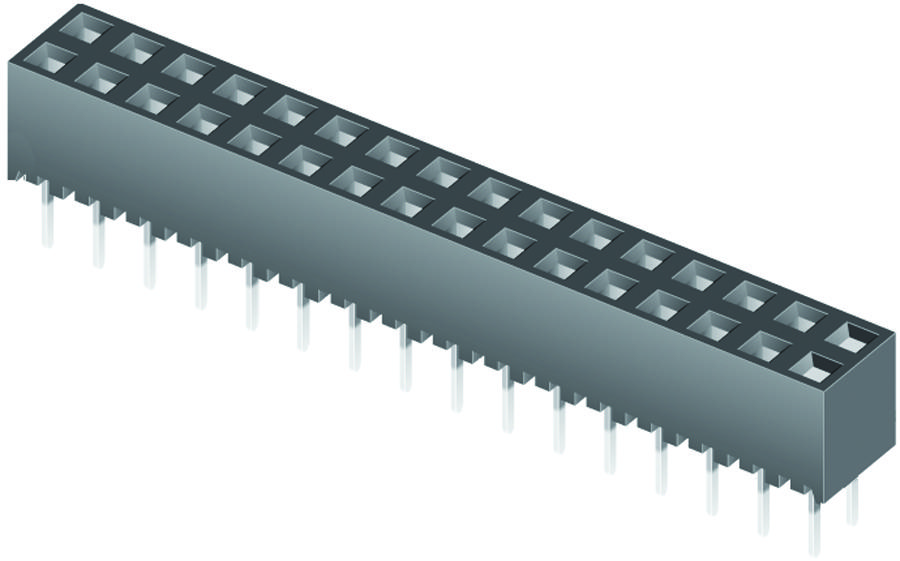

SAMTEC MMS13001LDV Socket Strip
The MMS series from Samtec consists of durable Tiger Claw socket strips designed for through-hole mounting in industrial applications. These strips feature a 2mm pitch spacing, accommodating 2 to 40 contacts per row, with various lengths and options such as vertical and pass-through configurations. Made of black liquid crystal polymer insulator with phosphor bronze contacts, plated with gold over nickel, they operate efficiently from -55°C to 125°C. With a contact resistance of 10 milliohms and 2A current rating at 80°C, these socket strips meet UL and CSA safety standards for reliable performance.
SAMTEC MMS13001LDV Socket Strip Specifications:
- Pitch Spacing: 2mm
- Contact Material: Phosphor Bronze
- Plating: Gold over nickel (50µ inch / 1.27µm)
- Insulator Material: Black liquid crystal polymer
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Current Rating: 2A at 80°C
- Insertion Depth: DH = 2.13mm (.084) to 2.79mm (.110), SH = 2.13mm (.084) minimum
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- SMT Lead Coplanarity: 0.15mm (.006") max
- Certifications: UL, CSA
Buy the Samtec MMS Series – Reliable Socket Strips for Industrial Applications
Enhance your industrial projects with Samtec MMS socket strips designed for reliability and high-performance operation. Featuring a 2mm pitch, gold-plated contacts, and black insulators, these contact components are ideal for through-hole applications demanding durability from -55°C to 125°C. They meet UL and CSA standards, ensuring safety and quality. Whether you need a single or double-row configuration, the MMS series provides excellent stability, high current capacity, and easy soldering, making them the perfect choice for engineers and technicians seeking dependable connection solutions for complex electronic assemblies.
Get Samtec MMS series socket strips today—built for precision, durability, and high-temperature performance in industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC MMS13001LDV?
You can click on the BUY or RFQ button to purchase MMS13001LDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MMS13001LDV?
You can download the MMS13001LDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MMS13001LDV?
SAMTEC
