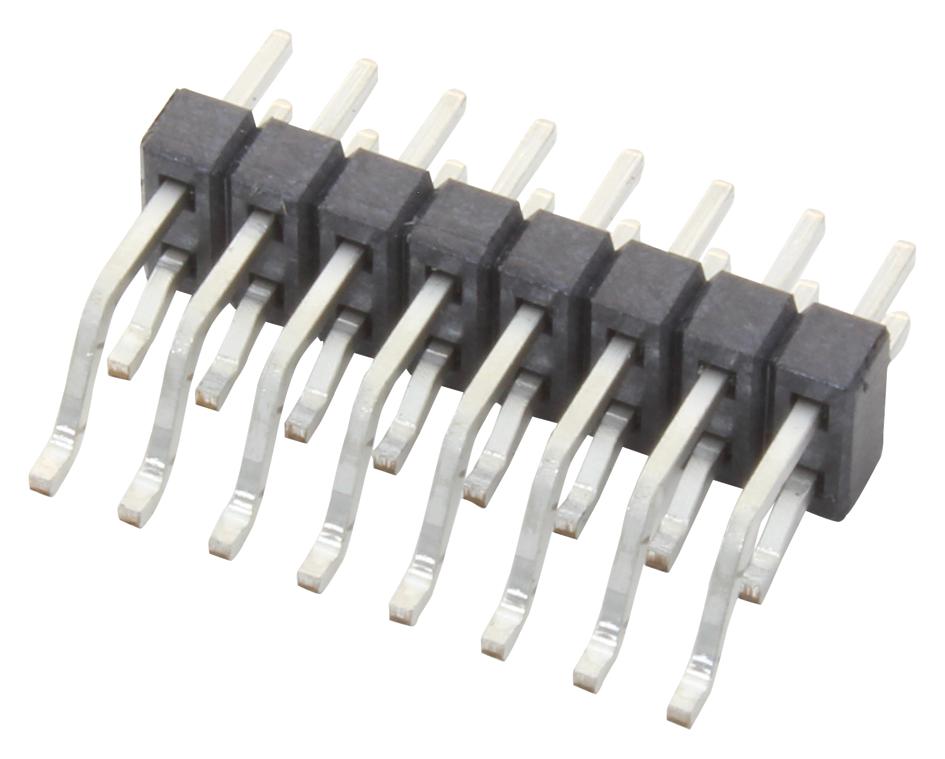

SAMTEC MMT12502TDH Horizontal Header Connectors
The MMT series from Samtec features horizontal unshrouded surface-mount headers with a 0.020 inch (0.50mm) square post, designed for reliable connection in industrial settings. These double-row headers support configurations from 2 to 36 contacts per row, with a 2mm pitch spacing, and operate within -55°C to 105°C. Made of phosphor bronze contacts with platinum or matte tin plating, they are insulated by durable black liquid crystal polymer. Compatible with various connector series, these headers meet UL standards for quality and safety, providing a robust, space-efficient solution for industrial equipment and circuit board connections.
SAMTEC MMT12502TDH Horizontal Header Connectors Specifications:
- Post Size: 0.020 inch (0.50mm) square
- Number of Positions: 2 to 36 per row
- Row Configuration: Double row
- Pitch Spacing: 2mm
- Operating Temperature Range: -55°C to 105°C
- Contact Material: Phosphor bronze
- Plating: Platinum or matte tin
- Insulator Material: Black liquid crystal polymer
- Compliance: UL E111594 standard
- Contact Thickness: 0.004 inch (0.10mm)
- Overall Height: Approximately 0.150 inches (3.81mm) depending on configuration
Buy the Buy Samtec MMT12502TDH Part Number MMT12502TDH Online
Order the Samtec MMT12502TDH horizontal surface-mount header connectors online today for high-quality, durable connections in industrial and electronic applications. These headers feature a 2mm pitch with configurations from 2 to 36 contacts, making them versatile for your circuit board needs. Designed with phosphor bronze contacts plated in platinum or matte tin, and insulated with black liquid crystal polymer, they ensure reliable performance across a temperature range of -55°C to 105°C. Perfect for industrial, automation, and control systems, these headers are easy to install and built for long-lasting durability.
Get Samtec MMT12502TDH today—built for reliable industrial circuit connections with robust insulation and precise contact spacing.
Frequently Asked Questions
Where can I buy SAMTEC MMT12502TDH?
You can click on the BUY or RFQ button to purchase MMT12502TDH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MMT12502TDH?
You can download the MMT12502TDH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MMT12502TDH?
SAMTEC
