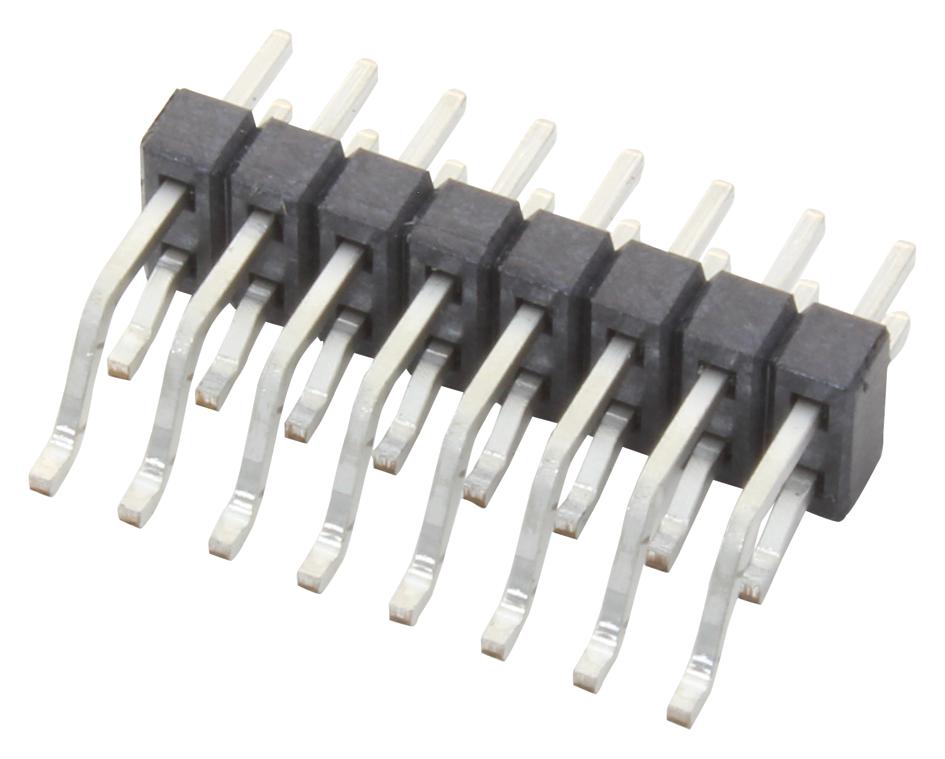

SAMTEC MMT13601TSHK Surface Mount Connector
The MMT series connector features a 2.00 mm pitch with options for gold or tin plating, designed for surface mount and mixed technology applications. Made with black liquid crystal polymer insulator and phosphor bronze terminals, it supports temperature ranges from -55°C to +105°C with tin and up to +125°C with gold. Suitable for single or double row configurations, it offers optional features like alignment pins, locking clips, molded pick-and-place pads, and various plating finishes. This versatile connector is RoHS compliant and ideal for PCB applications needing reliable, high-quality electrical connections.
SAMTEC MMT13601TSHK Surface Mount Connector Specifications:
- Pitch: 2.00 mm (.0787 inches)
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating Options: Au (Gold) or Sn (Tin) over 50 µ
- 1.27
- 0.05
- Ni (Nickel)
- Operating Temperature Range: -55°C to +105°C with Tin; -55°C to +125°C with Gold
- RoHS Compliant: Yes
- Max Contact Width: 0.004 inches (0.10 mm)
- Max Contact Thickness: 0.006 inches (0.15 mm)
- Configuration: Single or Double Row, Various Number of Positions
- Features: Optional Alignment Pins, Locking Clips, Molded Pick & Place Pads
- Applications: Surface Mount, Mixed Technology, PCB Connections, Electronics Manufacturing
Buy the Samtec Series MMT Connector: MMT13601TSHK
Buy the Samtec Series MMT connector online today and benefit from high-quality, reliable electrical connections suitable for surface mount and mixed tech designs. Featuring a 2.00 mm pitch, customizable plating options, and optional features like alignment pins and locking clips, this connector seamlessly integrates into PCB assemblies. Ideal for engineers and manufacturers, it offers robust temperature tolerance up to 125°C with gold plating, RoHS compliance, and ease of installation. Secure your order now and elevate your electronic product quality efficiently.
Order your Samtec Series MMT connector today and ensure dependable and versatile PCB connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC MMT13601TSHK?
You can click on the BUY or RFQ button to purchase MMT13601TSHK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MMT13601TSHK?
You can download the MMT13601TSHK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MMT13601TSHK?
SAMTEC
