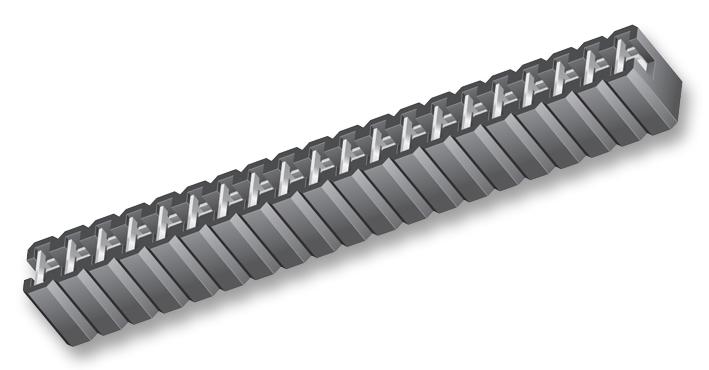

SAMTEC MNT102BKT Connector Series
The MNT102BKT is a versatile 100-pitch connector series with options for different contact plating and insulation materials, designed for reliable electrical connections in industrial applications. It features phosphor bronze contacts with gold or tin plating, and is suitable for various mounting and jumper configurations. The series includes different variants like SNT, MNT, 2SN, SNM, each with specific insertion depths, current ratings, and operating temperature ranges. Ideal for use in test equipment, automation systems, and electronic control panels requiring durable and precise connections.
SAMTEC MNT102BKT Connector Series Specifications:
- Contact Material: Phosphor Bronze
- Plating Options: Gold (0.25 µm) or Tin
- Operating Temp Range: -55°C to +105°C
- Insertion Depth: Black - 0.170 inches (4.32 mm); Gold - 0.090 inches (2.29 mm); Tin - 0.135 inches (3.43 mm)
- Current Rating: 4.3A per pin (SNT/TSW), 3.9A per pin (MNT/TSM), 2SN rated at 2.29 mm depth
- Lead Size Accepted: 0.64 mm (0.025 inches SQ), 0.51 mm (0.020 inches SQ)
- Max Processing Temp: Not recommended for IR/VP
- Material: Glass Filled Polyester Insulator, Thermoplastic SNM
- Number of Pins per Wheel: 6
- Operating Voltage: 250V
- Dimensions: 100 pitch, with various lengths and options available
- Note: Some lengths and styles are non-standard and non-returnable
- Certifications: Designed according to Samtec specifications, subject to change without notice
Buy the Samtec MNT102BKT – Reliable Connector Series for Industrial Applications
Enhance your project with the MNT102BKT connector series, offering high durability, precise dimensions, and versatile options for contact plating and insulation. Designed for industrial applications, this series ensures reliable electrical connections in automation systems, test equipment, and control panels. With various variants tailored for different depths, current ratings, and environmental conditions, it provides the flexibility needed for complex electronic assemblies. Order online now for fast delivery and seamless integration into your manufacturing or repair processes.
Buy Samtec MNT102BKT now and experience unmatched reliability and performance in your electronic and automation projects.
Frequently Asked Questions
Where can I buy SAMTEC MNT102BKT?
You can click on the BUY or RFQ button to purchase MNT102BKT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MNT102BKT?
You can download the MNT102BKT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MNT102BKT?
SAMTEC
