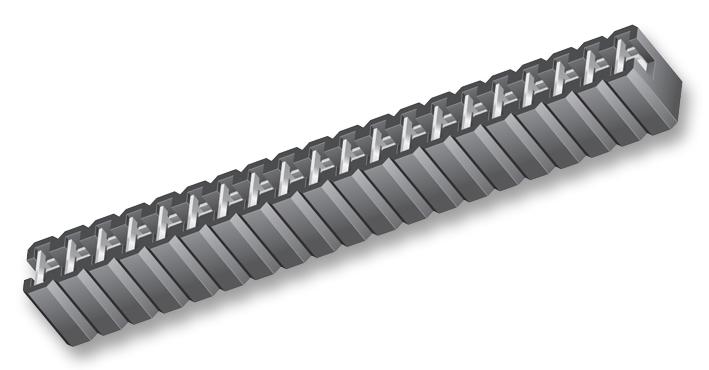

SAMTEC MNT103BKG Multi-Position Shunt
The MNT series multi-position shunt is versatile and compatible with numerous terminal strips such as 0.1-inch TSW, HTSW, MTSW, HMTSW, TLW, DW, EW, ZW, HW, TSM, BST, and PHT models. Ideal for industrial electrical connections, it offers reliable, stable contact points with robust construction. Made from thermoplastic insulators with phosphor bronze contacts, it supports high current ratings up to 4.3 A per pin for SNT models and 3.9 A for MNT versions. Operating temperature ranges from -55°C to +125°C, ensuring performance across varied environments.
SAMTEC MNT103BKG Multi-Position Shunt Specifications:
- Material: Thermoplastic insulator, Phosphor Bronze contact material
- Current Rating: SNT=4.3 A per pin, MNT=3.9 A per pin
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: SNT=5 mΩ, SNM=10 mΩ
- Working Voltage: MNT=450 VAC
- Insertion Depth: 2.29 mm (0.090 inches)
- Lead Size Accepted: 0.64 mm (0.025 inches) square, 0.51 mm (0.020 inches)
- Insertion Force: 33 oz (9.17 N) average per contact
- Withdrawal Force: Standard, non-standard lengths may vary
- Additional Options: Gold plating and glass-filled polyester available
- Compatibility: TSW, HTSW, MTSW, HMTSW, TLW, DW, EW, ZW, HW, TSM, BST, PHT terminal strips
Buy the Samtec Series MNT Multi-Position Shunt: MNT103BKG
Order the Samtec MNT103BKG multi-position shunt online today and enjoy fast delivery, exceptional quality, and reliable electrical connections for your industrial projects. Designed to fit a multitude of terminal strip models, this versatile component ensures stable contact points, high current capacity, and durability in harsh environments. Perfect for engineers and technicians seeking dependable connection solutions, it is built with high-quality materials, supporting temperature ranges up to 125°C and operating voltages up to 450 VAC. Enhance your electronic assemblies with this trusted industrial component.
Buy Samtec MNT103BKG now and experience unmatched reliability and performance in industrial electrical connections.
Frequently Asked Questions
Where can I buy SAMTEC MNT103BKG?
You can click on the BUY or RFQ button to purchase MNT103BKG from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MNT103BKG?
You can download the MNT103BKG datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MNT103BKG?
SAMTEC
