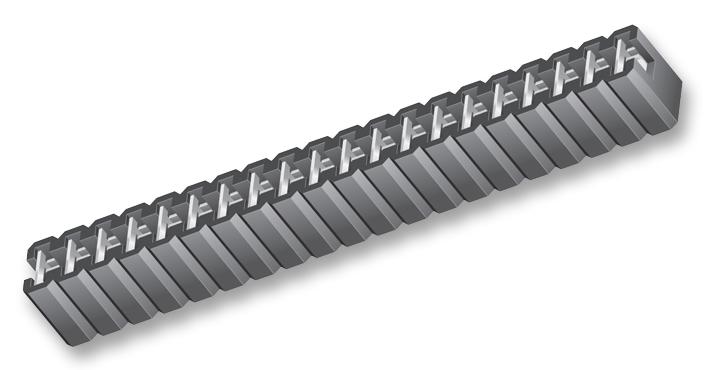

SAMTEC MNT107BKG High-current jumpers
The MNT-107-BK-G is a high-quality shunt and jumper connector from Samtec, designed for reliable electrical connections in industrial applications. Made from durable phosphor bronze with insulator material of natural thermoplastic, it withstands temperatures from -55°C to +125°C. Rated for 4.3 A per pin, it features a working voltage of 450 VAC, with an insertion depth of 2.29 mm and an insertion force of 33 oz. Its robust design ensures dependable performance in various electronic systems and circuit connections.
SAMTEC MNT107BKG High-current jumpers Specifications:
- Contact Material: Phosphor Bronze
- Insulator Material: Natural Thermoplastic
- Current Rating (SNT/TSW): 4.3 A per pin
- Current Rating (MNT/TSM): 3.9 A per pin
- Temperature Range: -55°C to +125°C
- Working Voltage: 450 VAC
- Contact Resistance: SNT=5 mΩ, SNM=10 mΩ
- Insertion Depth: 2.29 mm (.090 inches)
- Lead Size Accepted: 0.64 mm (.025 inches)
- Insertion Force: 33 oz (9.17 N)
- Withdrawal Force: Specifies compliance, non-standard lengths/styles exist
Buy the Samtec MNT-107-BK-G – Reliable Shunt for Industrial Applications
Purchase the Samtec MNT-107-BK-G high-current jumper connector online today. Engineered for reliable electrical connections, it supports 4.3 A per pin and withstands temperatures from -55°C to +125°C. Made from durable phosphor bronze with natural thermoplastic insulator, it features a 2.29 mm insertion depth and robust contact resistance. Perfect for industrial electronics, this connector ensures secure performance in your circuit applications. Order now to benefit from quick delivery and quality assurance.
Order your Samtec MNT-107-BK-G series connector today and enhance your electronic projects with dependable, high-current jumper connections.
