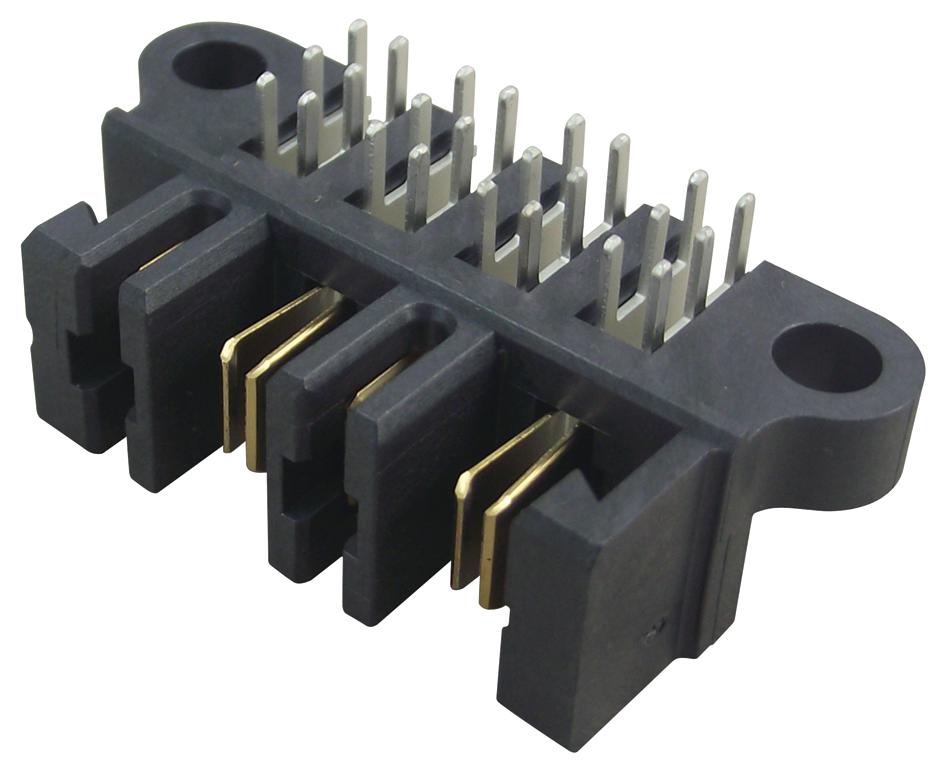

SAMTEC MPPT040101LRASDTR Electrical Connector
The MPPT-10-01-01-L-RA-SD is a high-performance, dual-blade connector designed for industrial applications requiring reliable electrical connections. Constructed with black LCP insulator material and copper alloy terminals, it features tin or gold plating to ensure excellent conductivity and corrosion resistance. Suitable for voltage ratings up to 600 VAC or 848 VDC, and current ratings of 18.40 A to 20.5 A depending on plating. It offers options such as screw-down locking clips, solder leads, and various sizes, making it ideal for robust and durable electrical systems.
SAMTEC MPPT040101LRASDTR Electrical Connector Specifications:
- Insulator Material: Black LCP
- Terminal Material: Copper Alloy
- Plating: Sn or Au over 50μm Ni
- Operating Temp Range: -55°C to + 125°C with Gold plating, -55°C to + 105°C with Tin plating
- Voltage Rating: 600 VAC / 848 VDC
- Current Rating: Up to 20.5 A depending on plating
- Contact Size: Various options with different pin and hole sizes (e.g., 2.36 mm, 5.00 mm, 13.50 mm)
- Dimensions: Multiple sizes and positions, adaptable for different configurations
- Features: Screw down option, locking clip, solder leads, non-standard sizes
- RoHS Compliant: Yes, Lead-Free Solderable: Yes
- Note: Some sizes, styles, and options are non-standard and non-returnable
- Designs, specifications, and components subject to change without notice
Buy the Samtec MPPT-10-01-01-L-RA-SD – Reliable Electrical Connector for Industrial Applications
Enhance your industrial electrical systems with the durable and versatile MPPT-10-01-01-L-RA-SD connector. Designed with high-quality materials, including copper alloy terminals and corrosion-resistant plating, it ensures reliable connectivity for voltages up to 848 VDC and current ratings up to 20.5 A. Features like screw-down locking, solder leads, and multiple sizes provide flexibility and security. Perfect for demanding environments, this connector is RoHS compliant and built for long-lasting performance. Purchase online today for efficient, durable electrical solutions.
Buy Samtec MPPT-10-01-01-L-RA-SD now and experience unmatched reliability and performance in your industrial electrical systems.
Frequently Asked Questions
Where can I buy SAMTEC MPPT040101LRASDTR?
You can click on the BUY or RFQ button to purchase MPPT040101LRASDTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MPPT040101LRASDTR?
You can download the MPPT040101LRASDTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MPPT040101LRASDTR?
SAMTEC
