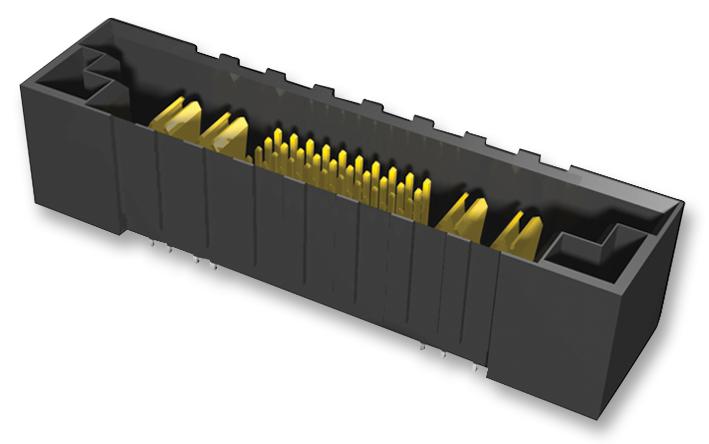

SAMTEC MPTC02240263001LV Signal Power Connector
The product is a flexible connector system designed for signal and power applications in electronic devices, featuring phosphor bronze signals and copper alloy power contacts. It supports a voltage rating of up to 300 VAC/424 VOC with tin or gold plating options. The connector includes multiple signal pin configurations (up to 80 pins), with standard creepage and clearance distances for safety compliance, and is lead-free and solderable. Suitable for various industrial, automation, and electronic assembly environments, it is built to meet strict quality standards with customizable options for creepage, clearance, and contact plating.
SAMTEC MPTC02240263001LV Signal Power Connector Specifications:
- Voltage Rating: 300 VAC/424 VOC
- Operating Temperature Range: -55°C to +125°C
- Contact Material: Phosphor Bronze (signal), Copper Alloy (power)
- Insulator Material: Black Liquid Crystal Polymer (LCP)
- Pin Configurations: Up to 80 signal pins with standard power options
- Creepage Distance: 2.86 mm (power), 2.86 mm (without LC, power)
- Clearance Distance: 0.8 mm (power), 1.83 mm (without LC, power)
- Plating Options: Gold on contact, matte tin on tail
- Lead-Free Solderable: Yes
- Certification: Meets recognized safety and quality standards
- Dimensions: Varies with pin configuration; typical length approximately 11.38 mm to 16.55 mm
- Design: Loadable contacts for customer-specific creepage and clearance requirements
- Compatibility: MPTC and MPSC series modular connectors
- Standards: RoHS compliant, UL recognized
- Usage: Suitable for industrial equipment, automation, electronic assemblies
Buy the Samtec MPTC02240263001LV – Reliable Power and Signal Connector for Industrial Applications
Enhance your electronic systems with the versatile Signal Power Connector designed for industrial and automation applications. Featuring up to 80 signal pins, high voltage ratings, and customizable creepage and clearance, this connector ensures safety, durability, and efficient connectivity. Its lead-free and solderable design complies with environmental standards, making it ideal for high-reliability environments. Whether for complex automation systems or electronic assemblies, purchase the Samtec MPTC02240263001LV online now to secure premium performance and seamless integration in your projects.
Buy Samtec MPTC02240263001LV now and experience unmatched reliability and performance in your electronic and industrial projects.
Frequently Asked Questions
Where can I buy SAMTEC MPTC02240263001LV?
You can click on the BUY or RFQ button to purchase MPTC02240263001LV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MPTC02240263001LV?
You can download the MPTC02240263001LV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MPTC02240263001LV?
SAMTEC
