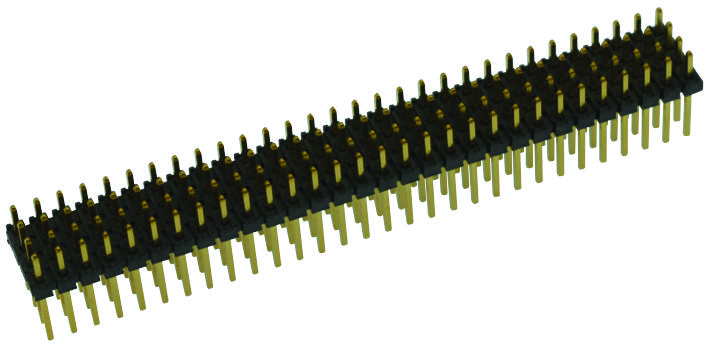

SAMTEC MTMM12213GQ505 Modified Through-Hole Header
The MTMM series are modified through-hole headers designed for reliable connections in electronic assemblies. Made from black liquid crystal polymer insulator material with phosphor bronze contacts, they feature tin or gold plating over nickel for durability and corrosion resistance. Operating temperatures range from -55°C to +125°C depending on plating. The series offers various configurations with different pin counts and pitches, ensuring flexibility for complex multi-row connections. RoHS compliance and lead-free solderability make these headers suitable for environmentally conscious manufacturing and high-reliability applications.
SAMTEC MTMM12213GQ505 Modified Through-Hole Header Specifications:
- Insulator Material: Liquid Crystal Polymer (LCP)
- Contact Material: Phosphor Bronze (0.13 mm)
- Plating: Sn or Au over Ni (50 μin)
- Operating Temp Range: -55°C to +125°C (with Gold plating), -55°C to +105°C (with Tin plating)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pitch: 2.00 mm (0.0787 inches)
- Number of Positions: Varies per model, e.g., 13 positions
- Row Configurations: Single, double, or quad row options
- Component Dimensions: Lengths vary, e.g., 6.48 inches (165 mm), 8.20 inches (208 mm), 10.08 inches (256 mm), etc.
- Design Standard: Non-returnable, subject to change without notice
- Operating Conditions: Designed for demanding electronic applications with high reliability
- Certification: RoHS compliant
Buy the Samtec Series MTMM Modified Through-Hole Header: MTMM12213GQ505
Enhance your electronic assemblies with the durable and high-reliability modified through-hole headers from Samtec. Featuring liquid crystal polymer insulators and phosphor bronze contacts, these headers offer excellent performance across a wide temperature range. RoHS compliant and lead-free, they ensure environmentally safe manufacturing. Available in multiple configurations including single, double, and quad row options, they are ideal for complex, high-density PCB connections. Purchase the Samtec MTMM series online for dependable, precision-engineered headers designed for demanding industrial and electronic applications.
Get Samtec MTMM12213GQ505 today—built for precision, durability, and high-temperature performance in electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC MTMM12213GQ505?
You can click on the BUY or RFQ button to purchase MTMM12213GQ505 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MTMM12213GQ505?
You can download the MTMM12213GQ505 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MTMM12213GQ505?
SAMTEC
