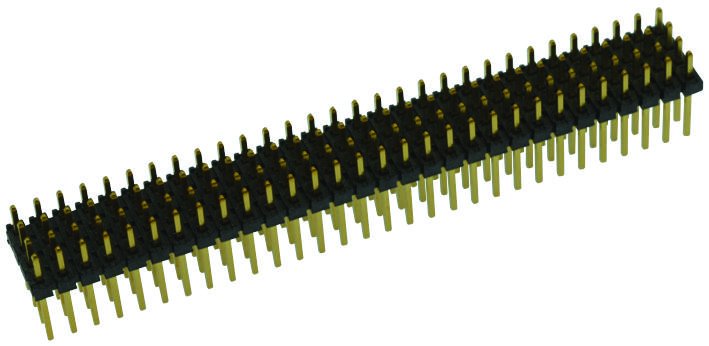

SAMTEC MTMM12506GQ224 Modified Through-Hole Header
The MTMM series are modified through-hole headers designed for reliable connections in electronic assemblies. Made from high-quality Liquid Crystal Polymer insulators and phosphor bronze terminals, these headers feature Sn or Au over Ni plating, supporting operating temperatures from -55°C to +125°C. RoHS compliant and lead-free, they are suitable for a variety of board-mate configurations, including single, double, or quad row options. Available in different pitch sizes, these headers ensure durable, precise, and solderable connections for demanding electronic applications.
SAMTEC MTMM12506GQ224 Modified Through-Hole Header Specifications:
- Insulator Material: Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze (0.13 mm)
- Plating: Sn or Au over 50 μ" Ni
- Operating Temperature Range: -55°C to +105°C with Tin, -55°C to +125°C with Gold
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pitch: 2.00 mm (0.0787 inches)
- Number of Positions: Varies, typically 8 to 13 positions
- Height Options: Ranges from 6.48 mm (0.255 inches) to 19.08 mm (0.751 inches)
- Configuration: Single, Double, or Quad Row options
- Connector Style: Modified Through-Hole Header
- Designs and specifications are subject to change without notice
- Built to Samtec's strict specifications; customer-specific requirements require approval
Buy the Buy Samtec Modified Through-Hole Header Part Number MTMM12506GQ224 Online
Order the Samtec Modified Through-Hole Header MTMM12506GQ224 online today. Designed with Liquid Crystal Polymer insulation and phosphor bronze contacts, these headers offer exceptional durability, high-temperature performance, and RoHS compliance. Ideal for reliable electronic connections in compact, demanding assemblies, they support various configurations and are easily soldered onto PCBs. With a range of pitch sizes and heights, these headers deliver precise alignment, strength, and longevity, ensuring your projects meet the highest standards of quality and dependability.
Get Samtec MTMM12506GQ224 today—built for precise, durable electronic connections with high-temperature and RoHS-compliant features.
Frequently Asked Questions
Where can I buy SAMTEC MTMM12506GQ224?
You can click on the BUY or RFQ button to purchase MTMM12506GQ224 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MTMM12506GQ224?
You can download the MTMM12506GQ224 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MTMM12506GQ224?
SAMTEC
