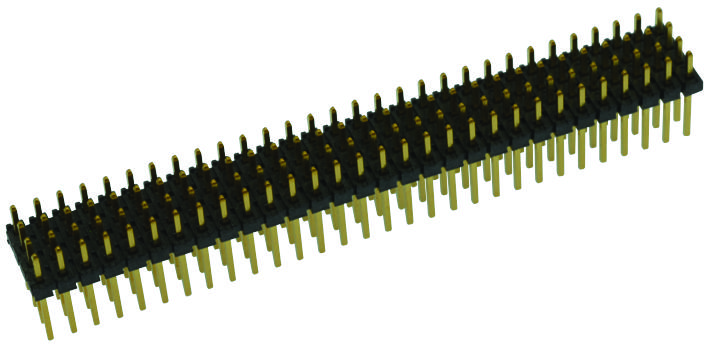

SAMTEC MTMM13006SQ255 Modified Through-Hole Header
The MTMM series modified through-hole headers are designed for reliable PCB connections. Manufactured with black liquid crystal polymer insulators and phosphor bronze terminals, these headers support operating temperatures from -55°C to +105°C with tin plating or up to +125°C with gold. RoHS compliant and lead-free solderable, they feature options for single, double, or quad row configurations, with various pitch sizes and pin counts. Suitable for high-density applications, they are built to SAMTEC specifications, ensuring durability and high-performance in electronic assemblies.
SAMTEC MTMM13006SQ255 Modified Through-Hole Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50 μ" Ni
- Operating Temp Range: -55°C to +105°C (Tin), -55°C to +125°C (Gold)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pitch Options: 2.00 mm (0.0787 inch), 3.94 mm (0.155 inch), 6.48 mm (0.255 inch), 8.00 mm (0.315 inch), 10.08 mm (0.397 inch), 11.58 mm (0.456 inch), 12.09 mm (0.476 inch), 13.59 mm (0.535 inch), 15.09 mm (0.594 inch), 15.60 mm (0.614 inch), 17.09 mm (0.673 inch), 19.08 mm (0.751 inch), 21.08 mm (0.830 inch)
- Number of Positions: Up to 13 positions
- Configuration: Single, double, or quad row options
- Design: Non-standard, non-returnable
- Compliance: Subject to SAMTEC's latest specifications, with customer-specific requirements approved accordingly
Buy the Buy SAMTEC MTMM Part Number MTMM13006SQ255 Online
Purchase the SAMTEC Modified Through-Hole Header MTMM13006SQ255 online today to enjoy durable, reliable, and high-density PCB connections. Engineered with liquid crystal polymer insulation and phosphor bronze contacts, this header series offers excellent temperature performance from -55°C to +125°C. Available in multiple pitch and configuration options, these headers meet RoHS standards and are fully lead-free. Perfect for high-performance electronic assemblies requiring dependable connectivity, order your MTMM13006SQ255 now for rapid delivery and quality assured.
Order your SAMTEC Series MTMM13006SQ255 today and ensure high-quality PCB connections with reliable through-hole headers designed for demanding electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC MTMM13006SQ255?
You can click on the BUY or RFQ button to purchase MTMM13006SQ255 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MTMM13006SQ255?
You can download the MTMM13006SQ255 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MTMM13006SQ255?
SAMTEC
