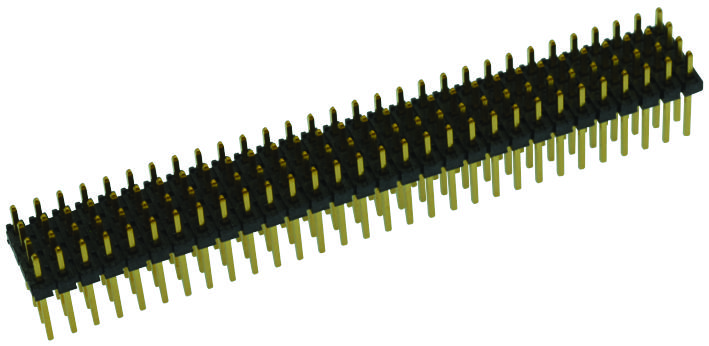

SAMTEC MTMM13009SQ340 High-Density Header
The MTMM series is a modified through-hole header designed for reliable PCB connections. Made with black Liquid Crystal Polymer insulation and phosphor bronze terminals, it features tin or gold plating over nickel, supporting operating temperatures from -55°C to +105°C with tin and up to +125°C with gold. This RoHS-compliant, lead-free connector ensures easy solderability and durability for various electronic applications. Available in multiple configurations, it suits high-density, single, double, or quad row board mating needs, supporting a range of pitches and pin counts for flexible designs.
SAMTEC MTMM13009SQ340 High-Density Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze (0.13 mm) .005 inch
- Plating: Sn or Au over Ni
- Operating Temp Range: -55°C to +105°C with Tin; -55°C to +125°C with Gold
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pitch: 0.0787 inch (2.00 mm)
- Configuration Options: Single, double, or quad row
- Number of Positions: Varies, customizable per application
- Height Range: From 6.48 inch (165 mm) to 21.08 inch (536 mm), depending on configuration
- Design: Non-standard, subject to change without notice
- Applications: PCB headers, electronic assembly, high-density connectors
Buy the Buy Samtec MTMM Series Through-Hole Header Part Number MTMM13009SQ340 Online
Secure your electronic designs with the Samtec High-Density Header from the MTMM series. Crafted with durable Liquid Crystal Polymer insulation and phosphor bronze terminals, it features gold or tin plating over nickel for excellent conductivity and corrosion resistance. Supporting operating temperatures up to +125°C with gold, this RoHS-compliant, lead-free connector offers easy solderability and flexibility for various configurations including single, double, or quad row arrangements. Perfect for PCBs requiring high-density connections in industrial, automation, and consumer electronics.
Order your Samtec MTMM Series through-hole header today and enhance your electronic projects with reliable, high-temperature, RoHS-compliant connectors.
Frequently Asked Questions
Where can I buy SAMTEC MTMM13009SQ340?
You can click on the BUY or RFQ button to purchase MTMM13009SQ340 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MTMM13009SQ340?
You can download the MTMM13009SQ340 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MTMM13009SQ340?
SAMTEC
