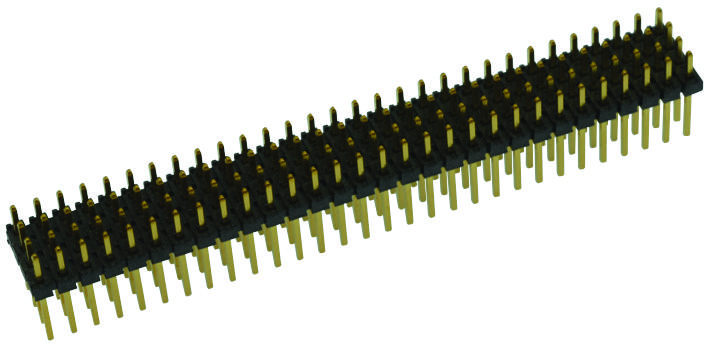

SAMTEC MTMM13011SQ420 High-temperature Through-Hole Header
This modified through-hole header features a choice of board mates in single, double, or quad row configurations, made from high-temperature liquid crystal polymer insulator material. It includes phosphor bronze terminals with optional tin or gold plating, suitable for operating temperatures between -55°C and +125°C. Compliant with RoHS, it is lead-free and solderable, designed for reliable, high-performance connections in demanding electronic applications. Compatible with various pin counts and pitch sizes, this header provides robust electrical contact and mechanical integrity for versatile PCB assembly.
SAMTEC MTMM13011SQ420 High-temperature Through-Hole Header Specifications:
- Insulator Material: Liquid Crystal Polymer (LCP)
- Terminal Material: Phosphor Bronze, 0.13 mm thick
- Plating Options: Sn or Au over 50 µin Ni
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pitch Sizes: 0.0787 inch (2.00 mm), 0.155 inch (3.94 mm), 0.204 inch (5.20 mm), 0.255 inch (6.48 mm), 0.315 inch (8.00 mm), 0.397 inch (10.08 mm), 0.456 inch (11.58 mm), 0.476 inch (12.09 mm), 0.535 inch (13.59 mm), 0.555 inch (14.10 mm), 0.614 inch (15.60 mm), 0.673 inch (17.09 mm), 0.751 inch (19.08 mm), 0.830 inch (21.08 mm)
- Number of Positions: Varies with configuration
- Standard Lengths: Ranges from 6.48 inches to 21.08 inches
- Design: Non-standard, non-returnable; subject to technical updates
- Certifications: RoHS Compliant
- Application: Reliable electrical connections in PCB assemblies, high-temperature environments
Buy the Buy Samtec MTMM Part Number MTMM13011SQ420 Online
Purchase the Samtec high-temperature through-hole header online today for robust, reliable electrical connections suitable for demanding industrial, consumer, and electronics manufacturing applications. Featuring high-grade phosphor bronze terminals with optional gold or tin plating, this header delivers excellent current-carrying capacity, durability, and temperature resilience from -55°C to +125°C. Its versatile configurations and multiple pitch sizes ensure perfect adaptability to your PCB layout, with RoHS compliance and lead-free solderability ensuring environmentally friendly assembly. Order now to upgrade your electronic designs with dependable, precision-engineered connectors.
Order your Samtec Series MTMM MTMM13011SQ420 today and secure highly reliable, but customizable through-hole headers for your precision electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC MTMM13011SQ420?
You can click on the BUY or RFQ button to purchase MTMM13011SQ420 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MTMM13011SQ420?
You can download the MTMM13011SQ420 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MTMM13011SQ420?
SAMTEC
