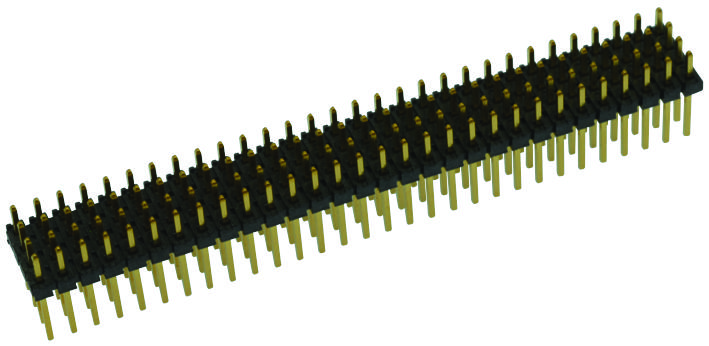

SAMTEC MTMM13609SQ315 Modified Through-Hole Header
The modified through-hole header series offers versatile options with single, double, or quad rows, suitable for board mating applications. Constructed with black liquid crystal polymer insulation and phosphor bronze terminals, these headers feature tin or gold plating over nickel, supporting operating temperatures from -55°C to +125°C. RoHS compliant and lead-free, they are designed for durability and high performance in electronic assemblies, making them ideal for various industrial, automation, and control systems requiring dependable connection points and robust construction.
SAMTEC MTMM13609SQ315 Modified Through-Hole Header Specifications:
- Insulator Material: Liquid Crystal Polymer (Black)
- Terminal Material: Phosphor Bronze (0.13 mm, 0.005')
- Plating: Sn or Au over 50 p' (1.27 μm) Ni
- Operating Temperature Range: -55°C to +105°C with Tin; -55°C to +125°C with Gold
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pitch: 2.00 mm (0.0787 inches)
- Number of Positions: varies (e.g., 9, 10, 12, etc.)
- Overall Lengths: ranges from approximately 6.48 inches to 21.08 inches
- Height Options: up to approximately 0.555 inches
- Design: Non-standard, non-returnable series, customizable per application
- Temperature Range: -55°C to +125°C depending on plating
- Component Material: Polyamide, phosphor bronze contact
- Certifications: RoHS Compliant, Lead-Free
- Construction: Through-Hole, Soldered Mounting
- Adjustable for multiple configurations, suitable for industrial automation and electronic modules
Buy the Buy Samtec Modified Through-Hole Header Part Number MTMM13609SQ315 Online
Discover the top-quality modified through-hole headers from Samtec, designed for durability and high performance in industrial automation, control, and electronic systems. Featuring liquid crystal polymer insulation and phosphor bronze terminals with tin or gold plating, these headers support temperature ranges up to +125°C. RoHS compliant and lead-free, they offer versatile configurations with single, double, or quad rows. Easy to solder and mount, ensuring reliable electrical connections for demanding industrial and electronics applications. Shop online now and upgrade your projects with trusted, industry-standard components.
Order your Samtec series MTMM13609SQ315 high-performance headers today and secure reliable connections for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC MTMM13609SQ315?
You can click on the BUY or RFQ button to purchase MTMM13609SQ315 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MTMM13609SQ315?
You can download the MTMM13609SQ315 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MTMM13609SQ315?
SAMTEC
