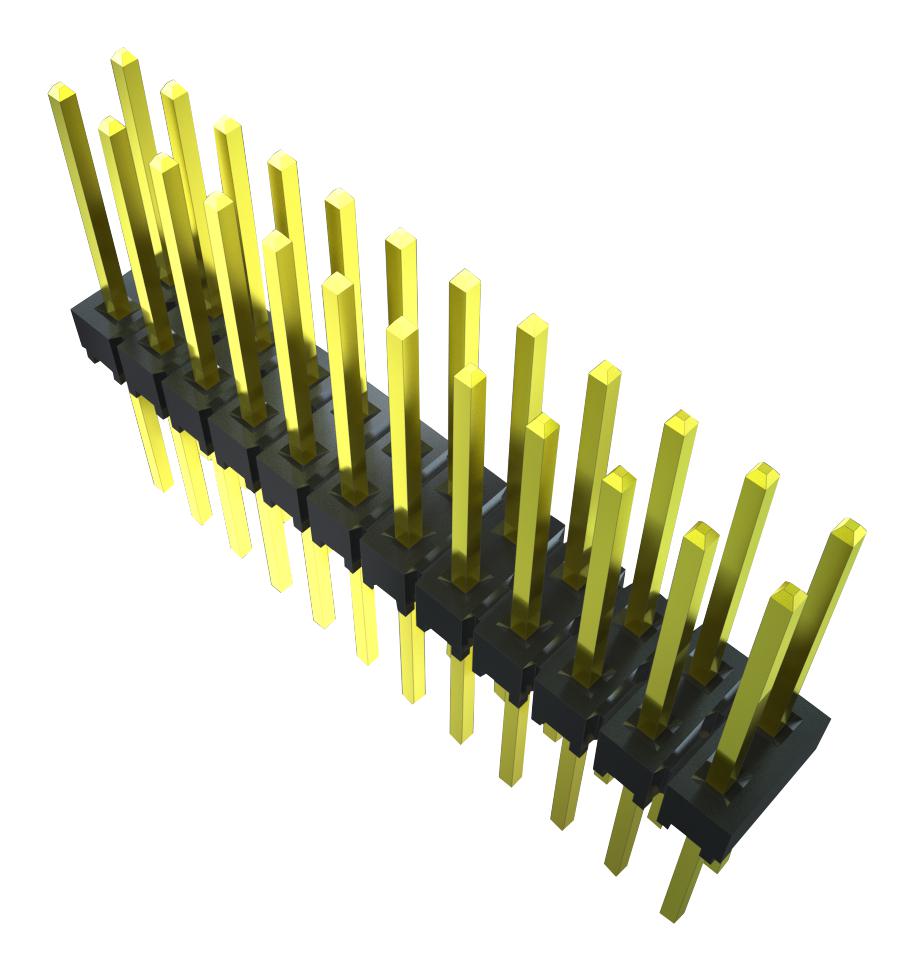

SAMTEC MTSW10909LD505 Board Socket
The MTSW-109-09-L-D-505 is a high-performance, low-profile, polarized board-to-board socket designed for reliable interconnections in compact electronic assemblies. Crafted with black glass-filled polyester insulator material and phosphor bronze conductors, it offers excellent electrical and mechanical properties. The socket supports a temperature range from -55°C to +125°C with gold plating and -55°C to +105°C with tin plating, ensuring durability under various environmental conditions. Its precise design enables easy installation, secure connections, and enhanced signal integrity, making it ideal for sophisticated, space-constrained electronic devices.
SAMTEC MTSW10909LD505 Board Socket Specifications:
- Insulator Material: Black Glass-Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: 50 µin Gold or Tin
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Style: Polarized, Board-to-Board
- Current Rating: 2 A per contact
- Dielectric Withstanding Voltage: 250 VAC
- Pitch: 2.54 mm (0.1 inch)
- Number of Positions: 9
- Mounting Style: Through Hole
- RoHS Compliant: Yes
- Part Number: MTSW-109-09-L-D-505
Buy the Samtec Series MTSW Board Mates: MTSW-109-09-L-D-505
Order the Samtec MTSW-109-09-L-D-505 socket online today for high reliability in space-constrained electronic devices. Featuring gold or tin plating, polarized design, and robust phosphor bronze contacts, this socket ensures secure connections, excellent electrical performance, and durability under wide temperature ranges. Its black polyester insulator enhances mechanical strength while supporting precise mounting. Whether for prototyping or mass production, buy online now to benefit from quick delivery, guaranteed quality, and expert support for your advanced electronic assembly projects.
Get Samtec MTSW-109-09-L-D-505 today—built for precision and long-lasting durability, ideal for compact electronic connections and reliable signal integrity.
