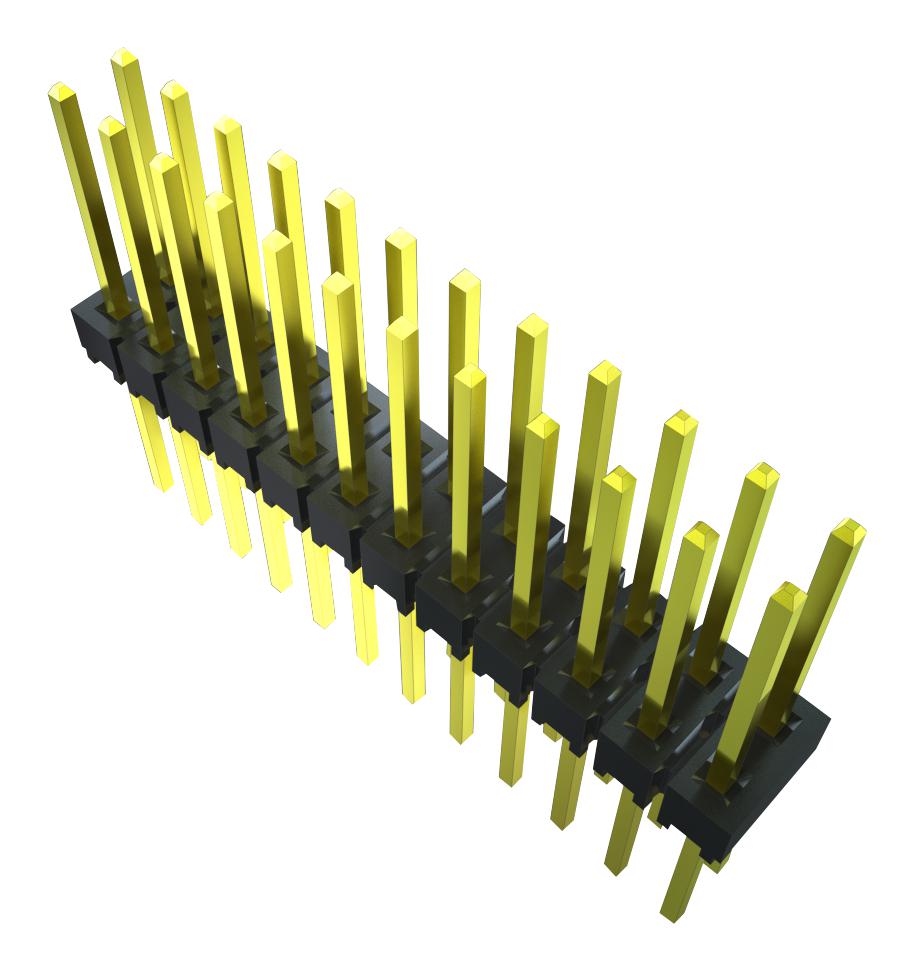

SAMTEC MTSW11809GS540 Board-to-Board Connector
This product is a high-flexibility board-to-board connector designed to accommodate various stacking heights and post configurations. Featuring a black glass-filled polyester insulator and phosphor bronze contacts with gold or tin plating, it ensures reliable electrical connections in demanding environments. Suitable for applications requiring a temperature range of -55°C to +125°C with gold plating, this connector supports RoHS compliance and offers easy solderability. Its versatile design includes straight and right-angle versions, with customizable post heights for optimized stacking and signal integrity.
SAMTEC MTSW11809GS540 Board-to-Board Connector Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact Material: Phosphor Bronze
- Plating: Gold (50 μin) or Tin
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Post Height: Specify in INCHES with .005" increments
- Configurations: Straight and Right-Angle Versions
- Connector Length (OAL): 2.29 inches (approximate for specific versions)
- Pitch: 2.54 mm (0.100")
- Number of Positions: Varies (e.g., 9, 18, 21, 23, 27, 28, 29, 30, 40, 50, 60, 80, 100, 126, 150, 200, 250, 300, 400, 500, 600, 700, 900, 1000, 1260, 1590, 2000)
- Contacts: Polarized, with optional gold on post for reliable mating
- Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Certifications: RoHS compliant
- Design: Modular stacking flexibility designed for custom height adjustments
Buy the Buy Samtec MTSW-118-09-G-S-540 Online
Experience the versatility and reliability of the Samtec Board-to-Board Connector designed for high-density stacking and custom configurations. Featuring durable materials like phosphor bronze contacts with gold or tin plating, it ensures excellent electrical performance across a wide temperature range. The connector supports RoHS compliance, is lead-free solderable, and offers both straight and right-angle options for versatile board assembly. Customize post heights in .005" increments to meet your specific stacking and interconnect needs, making it ideal for complex electronic systems and manufacturing applications.
Get Samtec MTSW-118-09-G-S-540 today—built for precision, high-density stacking, and reliable electrical connections in demanding environments.
