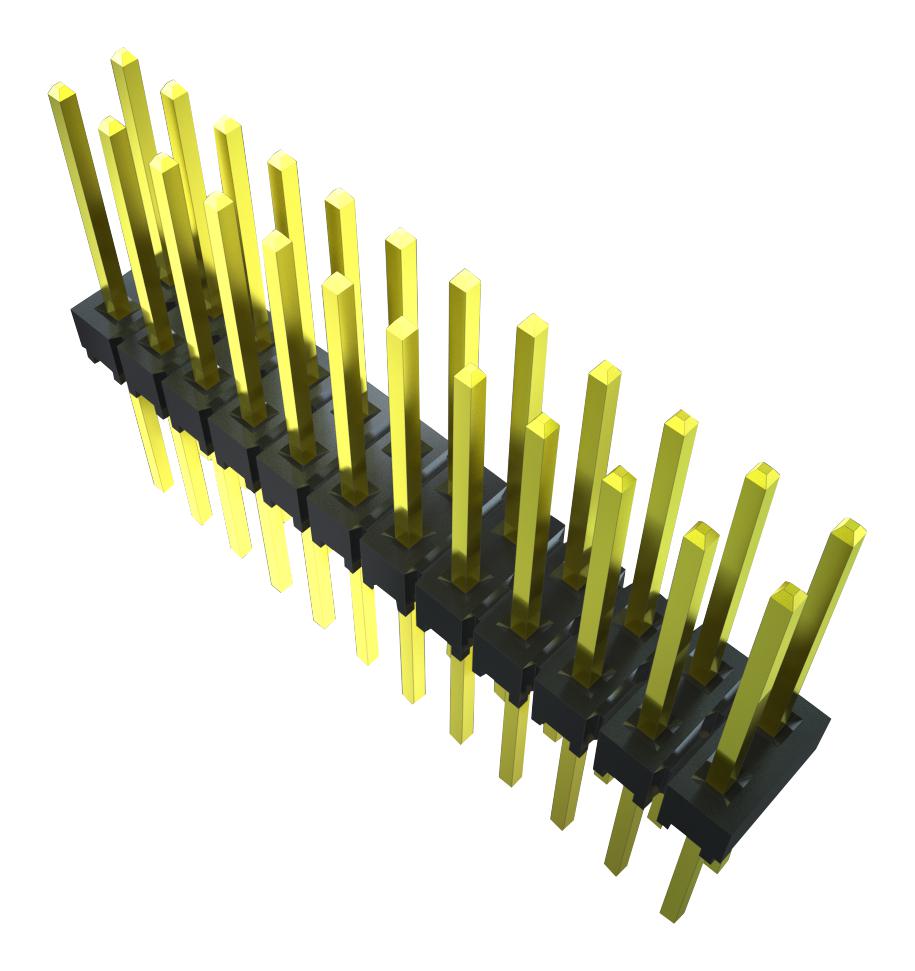

SAMTEC MTSW12009GD500 High-Density Board Connector
High-flexible board-to-board connector with a 2.54 mm pitch, constructed from black glass-filled polyester insulator material and phosphor bronze terminals with gold plating, optimized for reliable electrical connections in electronic systems. Designed to operate over -55°C to +125°C, it features a compact form factor with various post heights, and supports RoHS compliance and lead-free soldering for environmentally conscious assembly. Suitable for high-density applications, this series offers multiple configurations including straight and right-angle versions, ensuring versatile integration in complex electronic assemblies.
SAMTEC MTSW12009GD500 High-Density Board Connector Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold on Post (0.0006 inches / 15.24 micrometers)
- Operating Temp Range: -55°C to +125°C (with Gold), -55°C to +105°C (with Tin)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pitch: 2.54 mm
- Post Height: Specify in 0.005 inch (0.13 mm) increments
- Versions: Straight and Right-Angle
- Maximum Post Height: 1.29 inches (32.77 mm)
- Configuration: Supports multiple no. of positions (e.g., 4 to 28 positions)
- Connector Series: MTSW, HMTSW
- Temperature Rating: -55°C to +125°C
- Certifications: RoHS Compliant
- Design: Non-standard, non-returnable series
- Note: All designs and specifications are subject to change without notice
