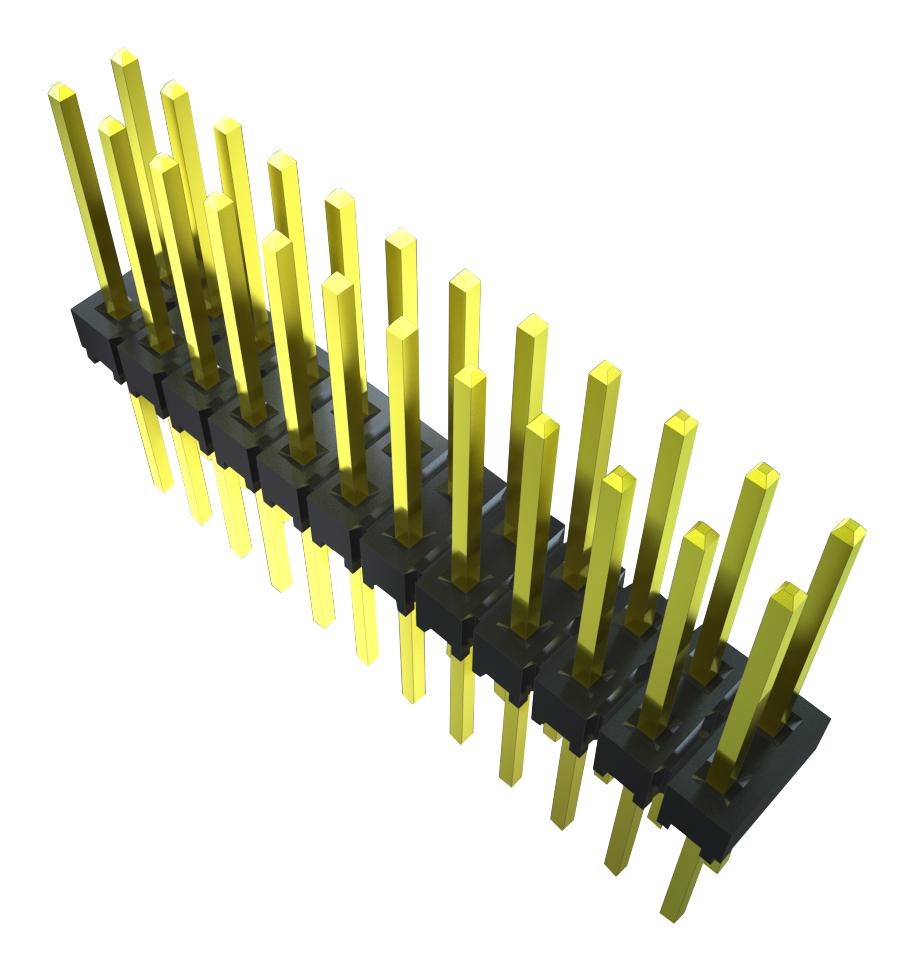

SAMTEC MTSW12009SD505 PCB Connector
The MTSW12009SD505 is a high-performance board-to-board connector designed for precise PCB applications, offering configurable straight and right-angle pin options with variable post heights. Constructed with black or natural polyester insulators and phosphor bronze contacts, it provides reliable electrical connectivity with gold or tin plating, operating effectively from -55°C to +125°C. Its compact design supports multiple pin counts, ensuring flexibility in system design. RoHS compliant and lead-free, it is ideal for demanding electronic assemblies requiring durability, precision, and ease of installation.
SAMTEC MTSW12009SD505 PCB Connector Specifications:
- Insulator Material: Polyester, Black or Natural
- Contact Material: Phosphor Bronze
- Plating: Gold (50
- Dimensions: Varies with model, typical post height increments in 0.005" (0.13 mm), overall length from 0.90" to 1.39
