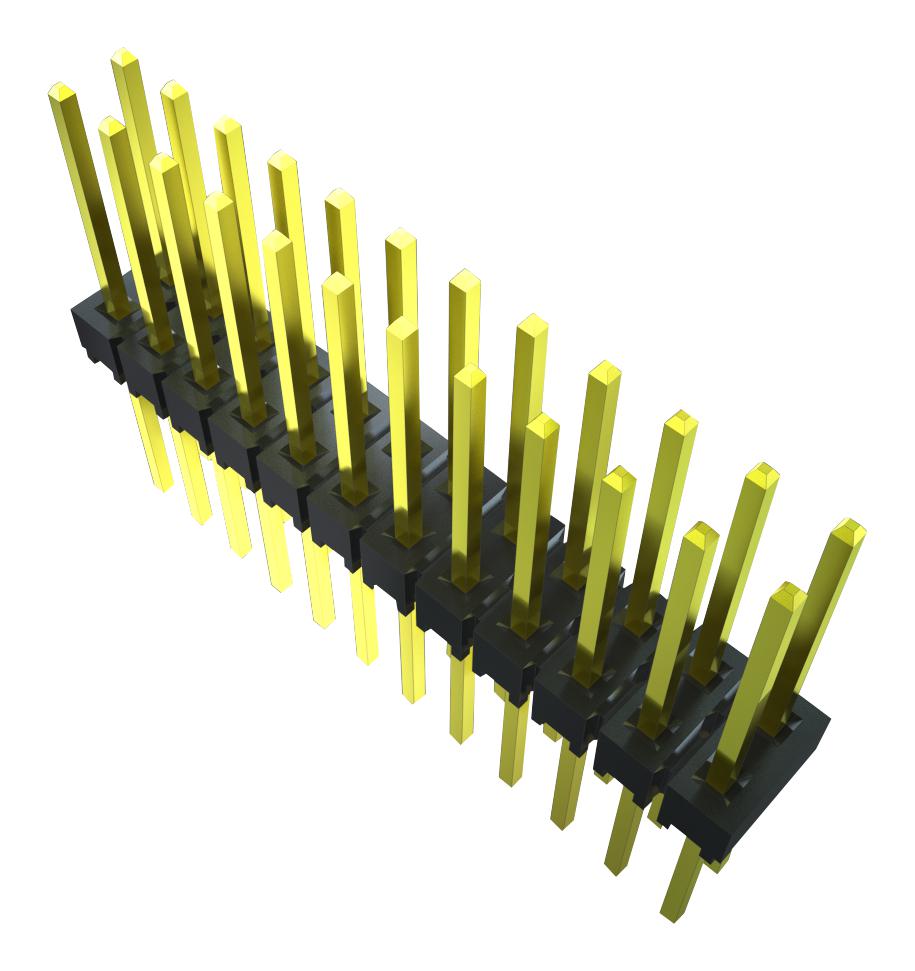

SAMTEC MTSW12509LS530 Stacking Connector
The MTSW series offers highly flexible stackable connectors suitable for PCB and cable assembly applications. Designed with black glass-filled polyester insulators and phosphor bronze terminations with gold or tin plating, these connectors operate efficiently across a temperature range of -55°C to +125°C. They feature customizable post heights, non-standard sizes, and are RoHS compliant. Ideal for electronic and industrial equipment requiring reliable connections with optional right-angle configurations, their precision engineering ensures durability and ease of installation in complex systems.
SAMTEC MTSW12509LS530 Stacking Connector Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold on post (approx. 50 microinches) or Tin
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- RoHS Compliant: Yes
- Post Height: Specify in INCHES, increments of .005" (0.13mm)
- Configuration: Straight and right-angle options (-RA)
- Dimensions: Length varies based on post height and style, typical length including post height approximately 0.090" to 1.000"
- Contact Pitch: 2.54 mm (0.100") and 0.600" (15.24 mm)
- Versions: Non-standard, custom sizes available, designed for stacking flexibility
- Certification: RoHS compliant, designed per Samtec specifications
- Application: PCB-to-board and cable assemblies in electronic systems
- Lead-Free Solderable: Yes, suitable for lead-free assembly
- Durability: High impact resistance, suitable for repeated connect/disconnect cycles
- Assembly: Compatible with standard SMT and through-hole processes
- Design: Modular with option for different stack heights and orientations
Buy the Samtec Series HMTSW Connector: MTSW12509LS530
Order the Samtec stacking connector today to ensure reliable electrical connections for your PCB and cable assemblies. Designed with durable materials and customizable post heights, this connector offers excellent flexibility and performance in electronic and industrial applications. Its RoHS compliance and high-temperature range make it suitable for various environments, ensuring longevity and stability. Whether you need straight or right-angle configurations, purchase online now for fast delivery and to meet your assembly requirements with confidence.
Get Samtec HMTSW12509LS530 today—built for precision and long-lasting durability in stacking connector applications.
