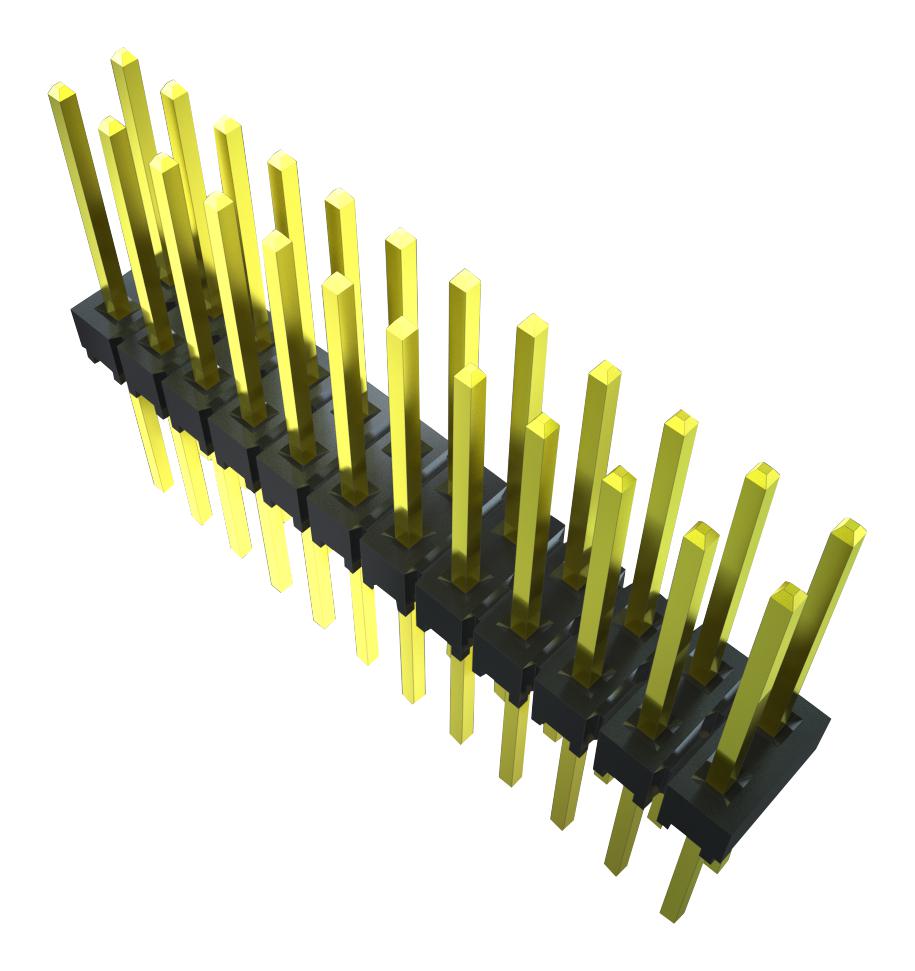

SAMTEC MTSW13224GD280LL High-Density Stackable Header
The MTSW series provides high-density, stackable headers and receptacles suitable for electronic arrays and circuit boards. Designed with black glass-filled polyester insulators and phosphor bronze contacts, these connectors offer excellent electrical performance with gold and tin plating options. They operate within a temperature range of -55°C to +125°C with gold plating and -55°C to +105°C with tin plating. Their various configurations include straight and right-angle versions, with customizable post heights for versatile installation in complex electronic systems. Compliant with ROHS standards, these connectors ensure reliable, high-quality connections suitable for demanding industrial and consumer electronics applications.
SAMTEC MTSW13224GD280LL High-Density Stackable Header Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating Options: 50 μ
- Ni (Nickel) on Gold, Tin variants available
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- RoHS Compliant: Yes
- Connector Type: Stackable headers, straight and right-angle versions
- Post Height: Customizable, specified in inches with 0.005" (0.13 mm) increments
- Dimensions: Vary depending on model, typically with post spacing of 2.54 mm or 0.100 inch
- Number of Positions: Configurable, including 4, 8, 12, 16, 20, 24, 28, 32, 40, 50, 60, 72, 80, 100, 128, 160, 200, 256, 300, 360, 420, 480, 560, 640, 720, 800, 960, 1120, 1280
- Lead Free Soldering: Supported, suitable for wave and reflow processes
- Certifications: RoHS compliant, multiple industry approvals
- Application: Suitable for electronic assemblies demanding high-density connections
- Design Notes: Non-standard, non-returnable series, customizable configurations available
Buy the Samtec Series HMTSW High-Density Stackable Header: MTSW13224GD280LL
Enhance your electronic assemblies with the high-density stackable headers from Samtec. Featuring customizable post heights, advanced plating options, and a temperature range suitable for demanding environments, these connectors ensure secure, reliable connections. Easy to install with options for straight or right-angle configurations, they support RoHS compliance and lead-free soldering processes. Perfect for complex circuit boards and industrial applications, order online today and discover quality and performance that meet your technical needs. Invest in Samtec’s durable, high-performance connectors for your next project.
Buy Samtec HMTSW13224GD280LL now and experience unmatched reliability and performance in high-density electronic connections.
