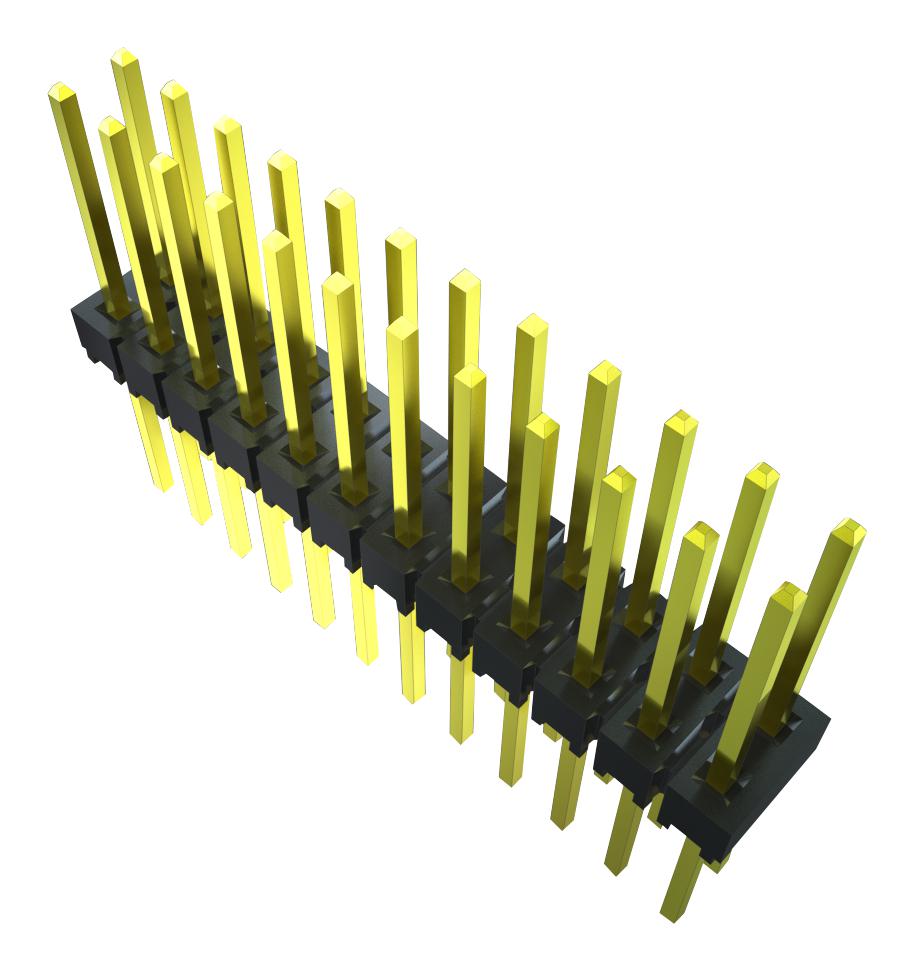

SAMTEC MTSW21209GS540 Board Connector
The MTSW21209GS540 is a high-performance, compact board-to-board connector designed for reliable electrical connections in electronic devices. Featuring a black glass-filled polyester insulator and phosphor bronze contacts with gold plating, it ensures optimal conductivity and corrosion resistance. Suitable for applications requiring precise pin alignment, this connector operates within a temperature range of -55°C to +125°C with gold plating and -55°C to +105°C with tin plating. Its versatile design provides flexible stacking options, supporting various heights and configurations for space-efficient assemblies.
SAMTEC MTSW21209GS540 Board Connector Specifications:
- Insulator Material: Black Glass-filled Polyester
- Terminal Material: Phosphor Bronze with Gold or Tin Plating
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Post Height: Specify in inches, increments of 0.005" (0.13 mm)
- Lead-Free Solderable: Yes
- RoHS Compliant: Yes
- Plating Thickness: 50
