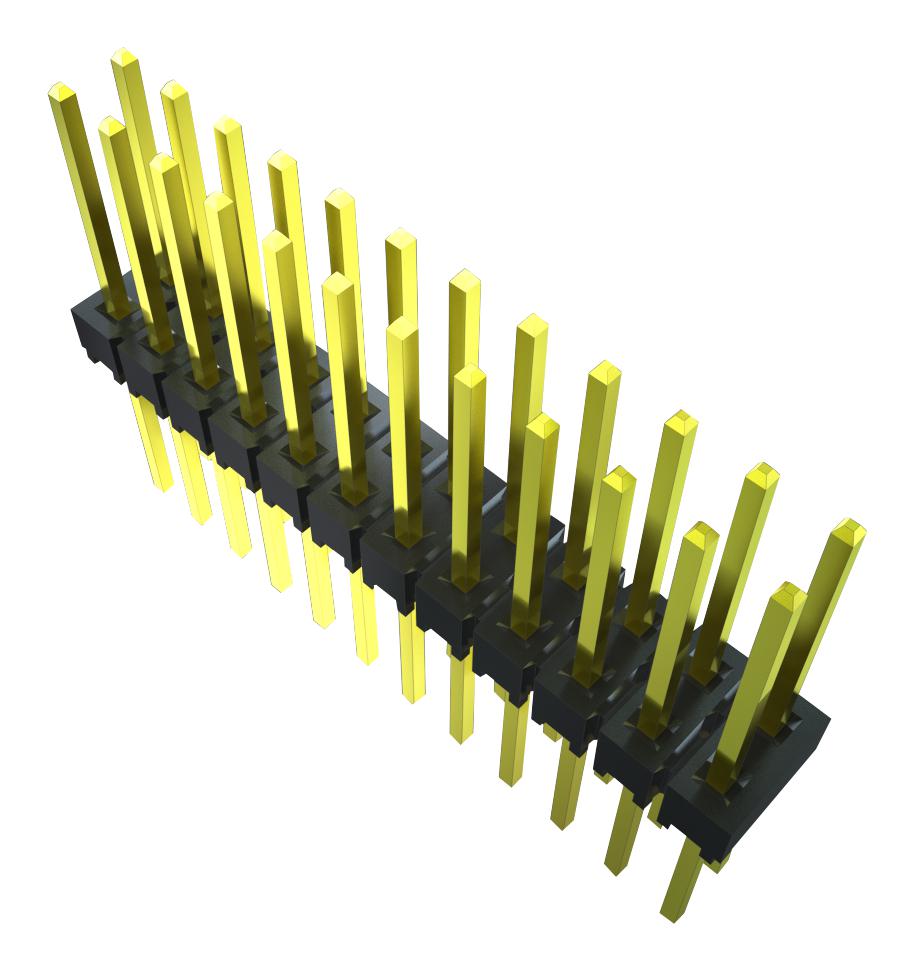

SAMTEC MTSW22512TS765 Edge Card Connector
The MTSW series is a versatile edge card connector system designed for PCB applications, offering various configurations with lead style options, multiple post heights, and plating choices including gold and tin. Made from durable materials like black glass-filled polyester insulators and phosphor bronze contacts, these connectors support operating temperatures from -55°C to +125°C. Available in straight or right-angle versions, they are RoHS compliant, lead-free, and suitable for high-density, reliable connections in complex electronic assemblies. Custom post heights and configurations ensure flexible deployment across diverse project needs.
SAMTEC MTSW22512TS765 Edge Card Connector Specifications:
- Insulator Material: Black glass-filled polyester
- Terminal Material: Phosphor bronze
- Plating Options: 50µin (1.27µm) Ni with optional Gold plating
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Dimensions: Post height specified in inches (.005" increments), varying lengths (e.g., 0.600 inches, 0.720 inches, 1.000 inches)
- Configurations: Straight and right-angle versions with optional polarization
- Number of Positions: Up to 28 positions
- Current Rating: 5A per contact, depending on configuration
- Recognitions: Compliant with industry standards, see Samtec quality documentation
- Designs: Non-standard, non-returnable, subject to change without notice
