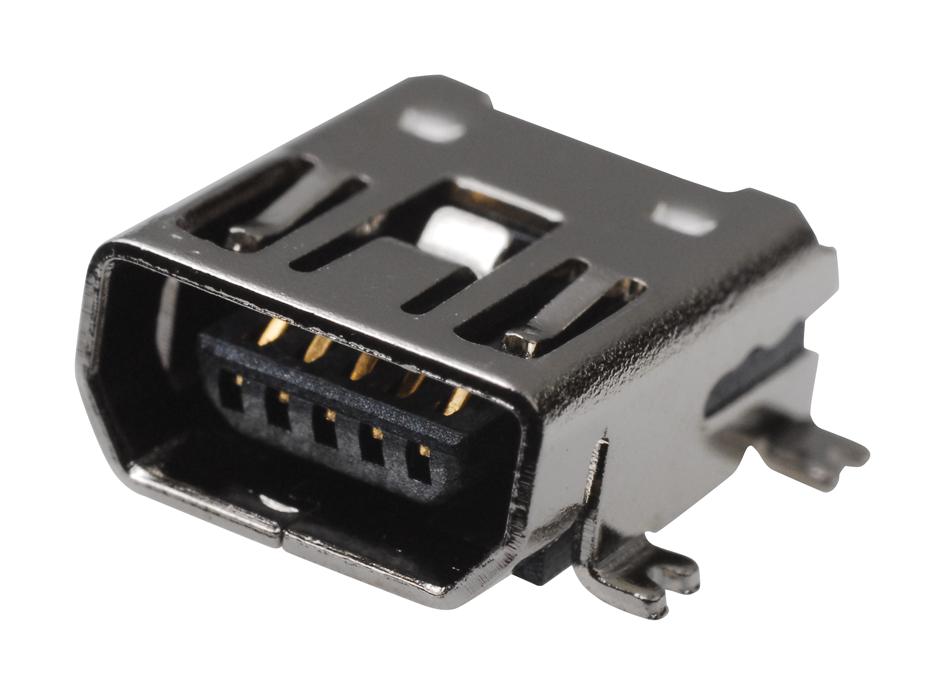

SAMTEC MUSB05FABSMA Mini USB 2.0 Connector
The MUSB-05-F-AB-SM-A is a 5-pin Mini USB 2.0 interface jack featuring gold-plated phosphor bronze contacts and a high-temperature thermoplastic insulator. Designed for surface-mount installation with an AB-type connector, it supports an operating temperature range from -50°C to +85°C, has a voltage rating of 30Vrms, and a contact resistance of 50 milliohms. With durability of at least 1,500 mating cycles, it is lead-free, solderable, and ideal for industrial applications requiring reliable data transfer and robust physical connection.
SAMTEC MUSB05FABSMA Mini USB 2.0 Connector Specifications:
- Insulator Material: High-temperature thermoplastic
- Contact Material: Phosphor Bronze with Gold plating on mating area
- Shell Material: Brass with Nickel plating
- Plating: Gold on mating area, Nickel on shell, Tin on tails
- Operating Temp Range: -50°C to +85°C
- Voltage Rating: 30 Vrms
- Contact Resistance: 50 milliohms
- Number of Cycles: 1500
- Solderability: Lead-free, solderable
- RoHS Compliant: Yes
Buy the Samtec MUSB-05-F-AB-SM-A – Reliable Mini USB 2.0 Interface for Industrial Applications
Enhance your electronic projects with the high-quality Mini USB 2.0 connector designed for industrial applications. Featuring gold-plated contacts, high-temperature thermoplastic insulator, and durable construction, this surface-mount component supports up to 1500 mating cycles, operates from -50°C to +85°C, and is RoHS compliant. Whether for data transfer or power applications, it ensures reliable performance, easy soldering, and compatibility with industry standards. Order online today for swift delivery and depend on this robust, lead-free USB interface jack to meet your needs.
Order your Samtec MUSB-05-F-AB-SM-A today and equip your projects with a durable, high-quality Mini USB 2.0 interface jack designed for demanding industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC MUSB05FABSMA?
You can click on the BUY or RFQ button to purchase MUSB05FABSMA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MUSB05FABSMA?
You can download the MUSB05FABSMA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MUSB05FABSMA?
SAMTEC
