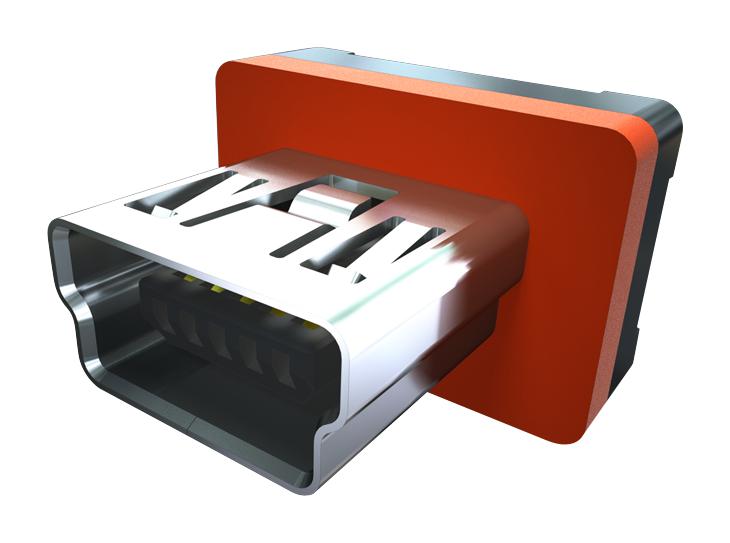

SAMTEC MUSBS05SBTHTR Sealed Mini USB Port
The SAMTEC MUSBS series offers a compact and sealed mini USB port solution ideal for applications requiring protection from environmental factors. Constructed with a high-temperature thermoplastic insulator, phosphor bronze contacts, and a phosphor bronze shell, this connector provides durability and excellent electrical performance. The gold plating on the mating area ensures low contact resistance and reliable signal transmission, while the tin-plated tails simplify soldering. Suitable for applications in industrial equipment, medical devices, and automotive systems, the MUSBS-05-S-B-TH-TR offers a robust and dependable connection.
SAMTEC MUSBS05SBTHTR Sealed Mini USB Port Specifications:
- Insulator Material: Black High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Shell Material: Phosphor Bronze
- Plating: Gold on Mating Area, Nickel on Shell, Tin on Tails
- Operating Temp Range: -50 °C to +85 °C
- Current Rating: 3.1 A per pin (1 pin powered per row)
- Voltage Rating: 30 VRMS
- Minimum Cycles: 5000
- Lead–Free Solderable: Yes
- Contact Plating Type: TH TR
- Contact Plating: Gold on Mating Area, Tin on Tails
- Packaging: Tape & Reel
- Connector Type: B Type
- Hot Pluggable: Yes
