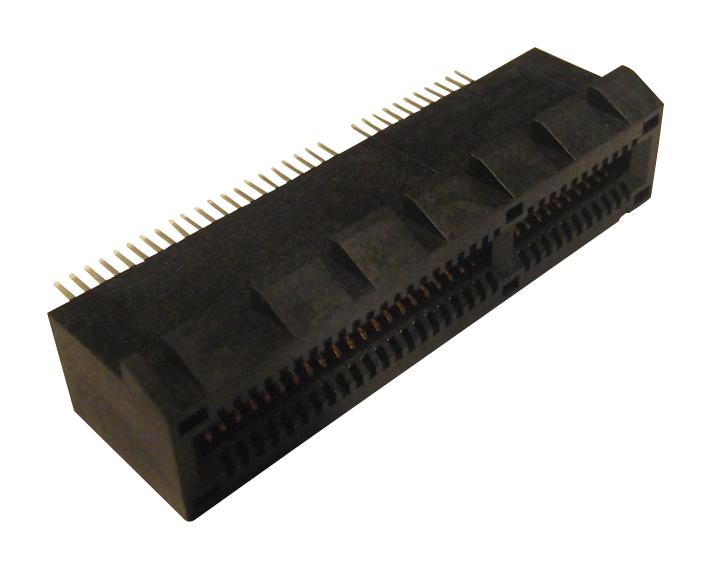

SAMTEC PCIE03602FDEMS2 PCIe Card Socket
This 36-position, 2-row PCI Express card socket features an edge mount design with gold-plated phosphor bronze contacts and a liquid crystal polymer insulator. It supports 0.062-inch (1.60mm) thick cards, has a current rating of 2.2A per pin, and operates within a temperature range of -55°C to +125°C. Designed for industrial applications, this socket provides reliable connections for PCIe cards with a 1.00mm pitch and polarized alignment for ease of installation and troubleshooting in high-temperature environments.
SAMTEC PCIE03602FDEMS2 PCIe Card Socket Specifications:
- Number of Positions: 36
- Rows: 2
- Mounting Style: Edge mount
- Contact Material: Phosphor Bronze
- Contact Plating: Au or Sn over Ni
- Insulator Material: Liquid Crystal Polymer
- Card Thickness Support: 0.062 inches (1.60mm)
- Current Rating: 2.2A per pin
- Operating Temperature Range: -55°C to +125°C
- Pitch: 1.00mm
- Supports PCI Express® links: 1, 4, 8, 16
- Stack Height: 11.1mm
- Wave Solderable: Yes
- Card Edge Mount Pins: Yes
- Compliance: PCI-SIG
- Application: Industrial PCB connections
Buy the Samtec Series PCIe Card Socket: PCIE03602FDEMS2
Order the PCIe Card Socket designed for industrial use from Samtec. This 36-position, 2-row socket features gold-plated phosphor bronze contacts and a liquid crystal polymer insulator. It supports 0.062-inch thick cards, operates from -55°C to +125°C, and offers a current rating of 2.2A per pin for robust, reliable connections. Ideal for PCI Express® applications, it supports multiple link configurations, ensuring easy integration with PCBs in various high-performance electronics and industrial systems. Purchase online today for fast delivery and quality assurance.
Get Samtec PCIe PCIE03602FDEMS2 today—built for reliable industrial connections and high-temperature performance.
Frequently Asked Questions
Where can I buy SAMTEC PCIE03602FDEMS2?
You can click on the BUY or RFQ button to purchase PCIE03602FDEMS2 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part PCIE03602FDEMS2?
You can download the PCIE03602FDEMS2 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of PCIE03602FDEMS2?
SAMTEC
