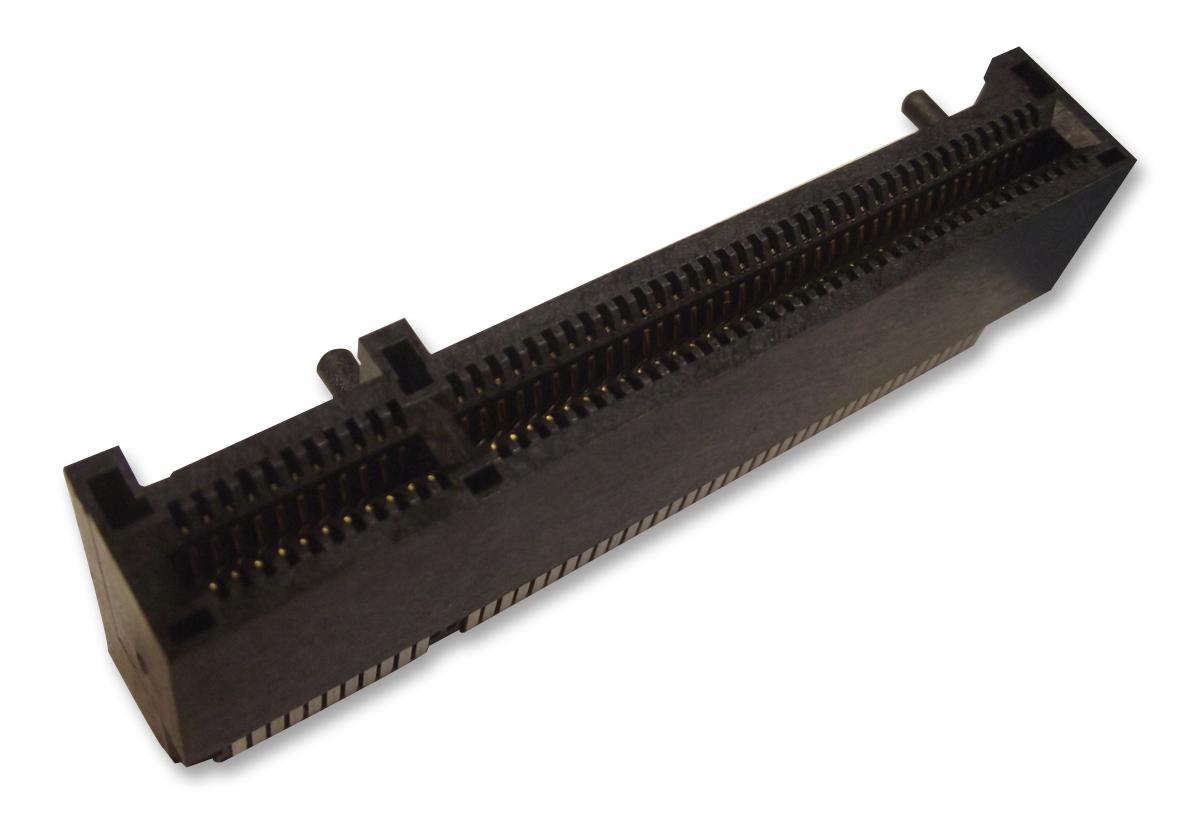

SAMTEC PCIE03602FDRA PCIe Connector
This high-performance PCI Express connector supports 1, 4, 8, and 16 PCIe links, with compatibility for 1.6mm cards. Made from black nylon insulator and phosphor bronze contacts, it features gold or tin over nickel plating for reliable conductivity. Operating between -55°C and +125°C, it ensures durability and stable connection performance. The connector’s stack height is 11.1mm, with card insertion depth of approximately 3.15 inches, ideal for versatile PCB applications and easy troubleshooting. Suitable for various PCIe card edge and PCB mount configurations, with compliant wave soldering compatibility.
SAMTEC PCIE03602FDRA PCIe Connector Specifications:
- Insulator Material: Black Nylon
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" (1.27μm) Ni
- Current Rating: 2.5A at 80°C ambient
- Operating Temp: -55°C to +125°C
- Card Insertion Depth: 3.15 inches (80mm)
- Stack Height: 11.1mm
- Supported PCIe Links: 1, 4, 8, 16
- Accepts 1.6mm PCIe cards
- Mounting: Card-edge and PCB mount options
- Wave Solder Compatible: Yes
- Compliance: JackS
- Operating Range: Large temp stability for demanding environments
- Part Number: PCIE03602FDRA
Buy the Samtec Series PCIe Connector: PCIE03602FDRA
Enhance your electronic systems with the reliable PCI Express connector designed for high-speed data transfer and versatile mounting options. Made with durable materials including black nylon insulator and phosphor bronze contacts, it supports multiple PCIe links and is compatible with various card edge and PCB mount configurations. Operating efficiently between -55°C and +125°C, this connector ensures stable performance even in demanding environments. Perfect for troubleshooting, debug, and connecting PCIe cards in electronic and industrial applications. Order online now for quick delivery.
Order your Samtec Series PCIe connector, PCIE03602FDRA today and ensure dependable high-speed connectivity for your PCIe applications.
Frequently Asked Questions
Where can I buy SAMTEC PCIE03602FDRA?
You can click on the BUY or RFQ button to purchase PCIE03602FDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part PCIE03602FDRA?
You can download the PCIE03602FDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of PCIE03602FDRA?
SAMTEC
