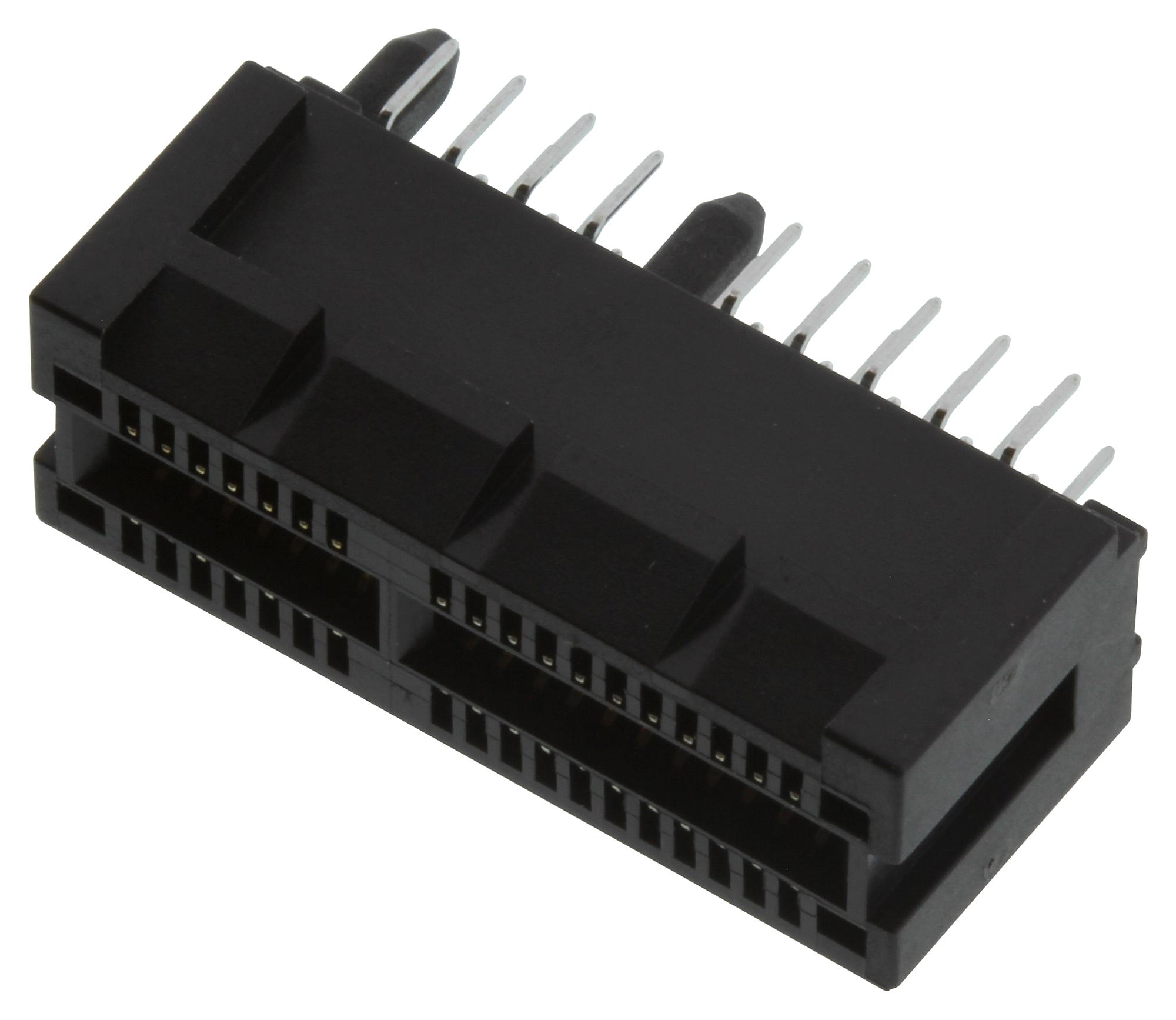

SAMTEC PCIE03602FDTH PCI Express Card Socket
This PCI Express edge card socket offers a versatile solution supporting 1, 4, 8, and 16 PCI Express links with options for edge mount, right-angle, and through-hole configurations. Featuring a 1.00 mm pitch, it accommodates cards up to 0.062 inches thick and supports PCIe 3.0, 4.0, and 5.0 standards with low-profile and slim body designs for space-saving applications. Made from durable materials like phosphor bronze and copper alloy, it operates reliably within -55°C to +125°C, with rated voltages up to 300 VAC and currents up to 3.2 A per pin, ideal for high-speed, high-frequency electronic projects.
SAMTEC PCIE03602FDTH PCI Express Card Socket Specifications:
- Pitch: 1.00 mm
- Number of Pins: 36, 64, 98, 164 depending on configuration
- Material: Phosphor Bronze, Copper Alloy
- Operating Temperature: -55°C to +125°C
- Voltage Rating: up to 300 VAC
- Current Rating: 2.1 to 3.2 A per pin
- Mounting Options: Edge Mount, Right-Angle, Through-Hole
- Card Thickness: Up to 0.062 inches
- Contact Plating: Gold flash, Matte Tin
- Standards Supported: PCIe 3.0, 4.0, and 5.0
Buy the Samtec Series PCI Express Card Socket: PCIE03602FDTH
Purchase your PCI Express Card Socket online today and benefit from reliable, high-performance connections for your computer and electronic system designs. This versatile socket supports multiple PCIe link configurations including PCIe 3.0, 4.0, and 5.0, with options for edge mount, right-angle, and through-hole mounting styles. Designed for durability with Gold flash and Matte Tin plating, it operates from -55°C to +125°C, supporting voltages up to 300 VAC and currents up to 3.2 A per pin. Ensure your high-speed electronic applications are space-efficient and robust by ordering now.
Order your Samtec Series PCI Express Card Socket today and secure space-efficient, high-speed connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC PCIE03602FDTH?
You can click on the BUY or RFQ button to purchase PCIE03602FDTH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part PCIE03602FDTH?
You can download the PCIE03602FDTH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of PCIE03602FDTH?
SAMTEC
