SAMTEC PCIE09802FDEMS2 PCI Express Connector
The PCIE09802FDEMS2 is a high-performance PCI Express connector designed for rapid data transfer in industrial and computing applications. It features gold or tin plating over phosphor bronze contacts, ensuring reliable connectivity and corrosion resistance. The connector supports differential pair signaling at 7.0 GHz/14 Gbps, with a robust black nylon insulator and optional card edge mount pins for easy installation. Rated up to 34B insertion loss, it operates efficiently within -55°C to +125°C, making it suitable for demanding environments and ensuring long-term durability and optimal performance.
SAMTEC PCIE09802FDEMS2 PCI Express Connector Specifications:
- Insulator Material: Black Nylon
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over Ni (1.27 μm)
- Current Rating: 2.2 A per contact
- Operating Temperature: -55°C to +125°C
- Card Insertion Depth: 8.00 mm (0.315 inches)
- Number of PCIe positions: 4, 8, 16, 64
- Differential Pair Signaling: 7.0 GHz / 14 Gbps
- Rated @ 34B Insertion Loss
- Compatibility: PCI Express® Jumpers & Extenders
- Dimensions: Various lengths and widths up to 25 mm pitch, detailed specifications available at Samtec
- Certifications: Compliance with PCI-SIG standards
- Connector Type: PCB or card-edge mount, polarization accepted

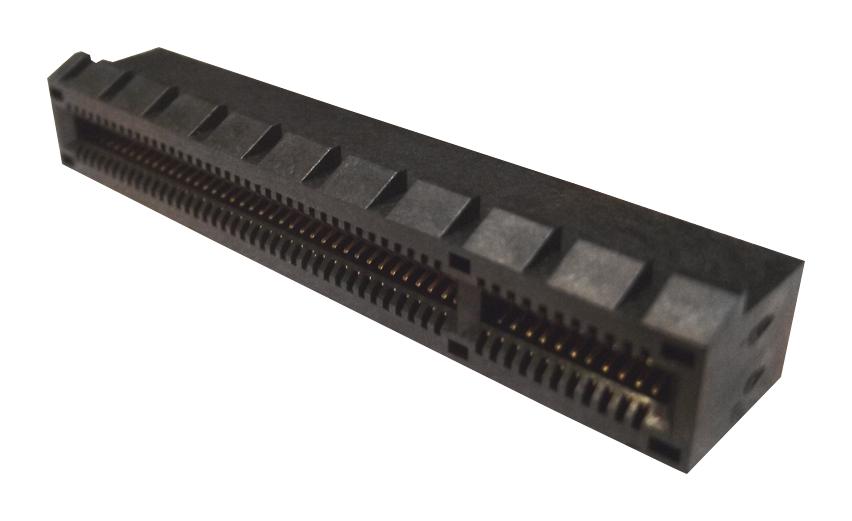

Buy the Samtec PCIE09802F – Reliable PCI Express Connector for Industrial Applications
Purchase the PCIE09802F connector online now to ensure reliable high-speed PCI Express connections for your industrial or computing projects. Designed with robust materials and advanced plating for longevity, this connector supports differential pair signaling at 14 Gbps, making it ideal for demanding data transfer applications. Its versatile mounting options include PCB and card-edge, with various lengths to suit your needs. Order today to experience seamless installation, superior performance, and long-term durability in your electronic systems.
Get Samtec PCIE09802F today—built for precision, high-speed data transfer, and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy SAMTEC PCIE09802FDEMS2?
You can click on the BUY or RFQ button to purchase PCIE09802FDEMS2 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part PCIE09802FDEMS2?
You can download the PCIE09802FDEMS2 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of PCIE09802FDEMS2?
SAMTEC
