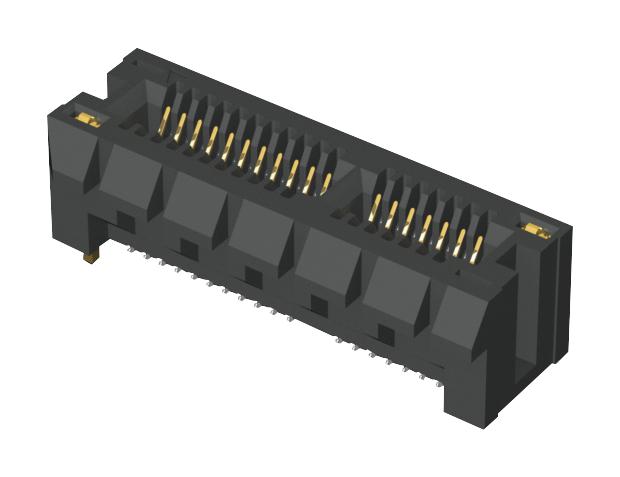

SAMTEC PCIELP0101SDVAWTTR Low-profile PCI Express Connector
The PCIE-LP Series low-profile edge card connector is PCI Express® Gen 4 compliant. Supporting one, four, eight, and sixteen links, it offers excellent bandwidth. With Edge Rate® contact technology on a 1.00 mm pitch, it ensures optimal signal integrity. Its ultra-low profile of just 8 mm, 3 mm thinner than standard connectors, provides increased vertical clearance for better airflow and easier routing in space-constrained environments. Designed for high-speed data transfer at 16 GT/s, it combines durability with reduced crosstalk, ideal for demanding applications requiring reliable performance and efficient design.
SAMTEC PCIELP0101SDVAWTTR Low-profile PCI Express Connector Specifications:
- Connector type: Edge card connector
- Compliance: PCI Express Gen 4
- Number of links supported: 1, 4, 8, 16
- Pitch: 1.00 mm
- Profile height: 8 mm
- Material: Black Nylon insulator, Phosphor Bronze contacts
- Plating: Au or Sn over Ni
- Current rating: 2.2 A per pin
- Operating temperature: -55°C to +125°C
- RoHS compliant: Yes
- Lead-free solderable: Yes
- Contact technology: Edge Rate®
- Card insertion depth: 7.65 mm
- Applications: PCIe high-speed data transfer, space-constrained designs
- RoHS compliance: Yes
Buy the Samtec PCIELP0101SDVAWTTR – Reliable PCI Express Connection for Industrial Applications
Order the Samtec low-profile PCI Express connector today to ensure high-speed data transfer, robust durability, and space-saving design. Perfect for PCIe Gen 4 applications requiring reliable high bandwidth connectivity with a low profile of just 8 mm. Easy to install, RoHS compliant, with lead-free solderability, and supporting configurations from 1 to 16 links. Enhance your system’s performance and airflow with this durable, technologically advanced connector designed for demanding environments and space-constrained applications.
Buy Samtec PCIELP0101SDVAWTTR now and experience unmatched reliability and performance in space-efficient PCIe connectivity.
Frequently Asked Questions
Where can I buy SAMTEC PCIELP0101SDVAWTTR?
You can click on the BUY or RFQ button to purchase PCIELP0101SDVAWTTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part PCIELP0101SDVAWTTR?
You can download the PCIELP0101SDVAWTTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of PCIELP0101SDVAWTTR?
SAMTEC
