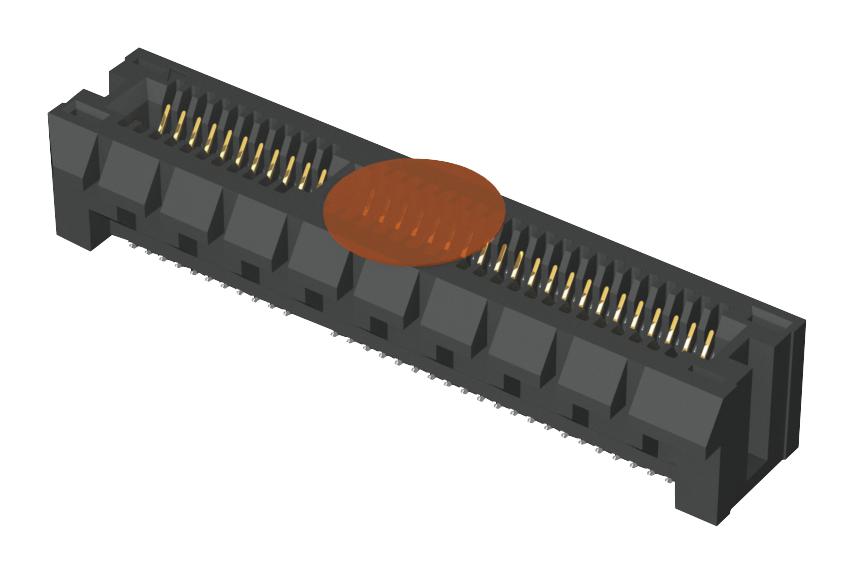

SAMTEC PCIELP0401SDVAKTR PCI Express Connector
The PCIE-LP Series low-profile edge card connectors are PCI Express® Gen 4 compliant, supporting 1, 4, 8, and 16 link configurations for various bandwidth needs. Featuring Edge Rate® contacts on a 1.00 mm pitch, they offer optimized signal integrity. With a slim profile of 8 mm—3 mm thinner than standard—they enhance airflow and routing within constrained spaces. Supporting 16 GT/s bit rate, these connectors enable high bandwidth, low latency, and power efficiency. Edge Rate® contacts improve durability, reduce crosstalk, and are resistant to damage when unmating, ensuring reliable performance.
SAMTEC PCIELP0401SDVAKTR PCI Express Connector Specifications:
- Connector type: PCI Express® Gen 4 compliant edge card connector
- Configurations supported: 1, 4, 8, 16 link support
- Contact system: Edge Rate® contacts for signal integrity
- Pitch: 1.00 mm (.0394 inch)
- Profile height: 8 mm, 3 mm thinner than standard
- Material: Black Nylon insulator, Phosphor Bronze contacts
- Plating: Au or Sn over 50 μ
- 1.27
- 1
- 0.03937
- 8.61
- 11.65
- 7.3
- 15.4
- 2.5
- 2
- 28.15
- 90
- 16
- 8
- 4
- 1
- 1.6
- 1
- 4
- 8
- 16
- 50
- 75
- 50
- 75
- 100
- 125
- 150
- 200
- supports 1, 4, 8, 16 links
- operates at data rate of 16 GT/s
- high bandwidth, low latency, power-efficient
- Operating temperature: -55°C to +125°C
- RoHS compliant and lead-free solderable
- Suitable for PCB and card-edge mounting
- Compatible with space-constrained and airflow-sensitive designs
- Durable Edge Rate® contact system reduces crosstalk and improves cycle life
Buy the Samtec Series PCIe Connector: PCIELP0401SDVAKTR
Order the Samtec PCI Express high-speed connector online today and enjoy fast shipping, high reliability, and excellent signal integrity. Designed for space-sensitive and demanding high-bandwidth applications, this connector supports PCIe Gen 4, 16 GT/s, with Edge Rate® contacts on a 1.00 mm pitch. Its slim profile of just 8 mm makes it ideal for compact systems needing efficient airflow and routing. Durable and RoHS compliant, it ensures long cycle life, low crosstalk, and optimal performance for your high-speed interface needs.
Buy Samtec PCIELP0401SDVAKTR low-profile PCI Express connector now and experience reliable high-speed data transfer in space-constrained applications.
Frequently Asked Questions
Where can I buy SAMTEC PCIELP0401SDVAKTR?
You can click on the BUY or RFQ button to purchase PCIELP0401SDVAKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part PCIELP0401SDVAKTR?
You can download the PCIELP0401SDVAKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of PCIELP0401SDVAKTR?
SAMTEC
