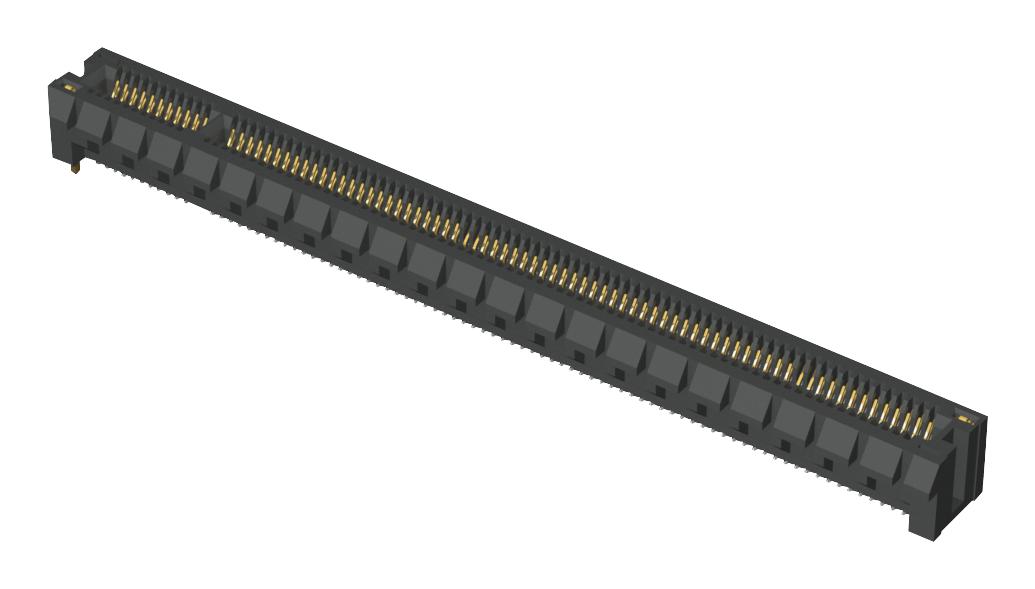

SAMTEC PCIELP1601SDVAWT PCIe Edge Connector
The PCIE-LP Series low-profile edge card connector is PCI Express® Gen 4 compliant, supporting 1, 4, 8, and 16 links for high bandwidth needs. It features Edge Rate® contacts on a 1.00 mm pitch for signal integrity. With a compact profile height of just 8 mm—3 mm lower than standard connectors—it maximizes space management in chassis, improves airflow, and simplifies component routing. Designed for space-constrained electronic systems, it offers data transfer rates up to 16 GT/s, ensuring low latency, power efficiency, and durable, impedance-controlled connections with minimized crosstalk.
SAMTEC PCIELP1601SDVAWT PCIe Edge Connector Specifications:
- Connector type: Edge card
- Supported PCI Express® versions: Gen 4
- Number of links: 1, 4, 8, 16
- Pitch: 1.00 mm
- Profile height: 8 mm (reduced by 3 mm from standard)
- Contact system: Edge Rate® contacts
- Max data transfer rate: 16 GT/s
- Impedance control: Yes
- Crosstalk reduction: Yes
- RoHS compliant: Yes
- Soldering: Surface mount, lead-free
- Insulator material: Polyamide (LCP)
- Operating temperature: -55°C to +125°C
- Application: High-speed electronic systems, space-constrained environments
