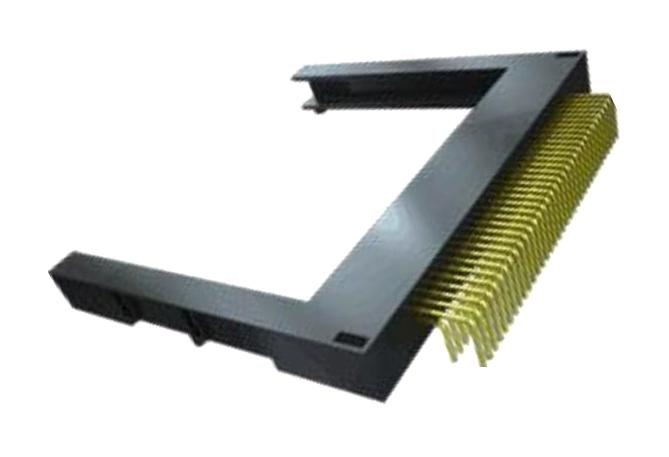

SAMTEC PCMT13402LDRA02SL Electrical Connector
This electronic connector features a compact design with a black liquid crystal polymer insulator, phosphor bronze terminals, and BeCu contacts plated with Sn or Au over Ni, ensuring high durability and corrosion resistance. Operating temperature ranges from -55°C to +105°C with a contact resistance of 10 mΩ, making it suitable for various industrial applications. It supports reflowed and through-hole soldering, with coplanarity up to 0.15 mm, RoHS compliance, and a design optimized for high-density PCB layouts. Compact, reliable, and RoHS compliant, ideal for demanding electronic systems.
SAMTEC PCMT13402LDRA02SL Electrical Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Contact Material: BeCu
- Plating: Sn or Au over 50u" Ni
- Operating Temp Range: -55°C to +105°C (Sn), -55°C to +125°C (Au over Ni)
- Contact Resistance: 10 mΩ
- Insertion Depth: 3.05 mm
- Insertion Force: 4.0 oz (1.11 N) Avg.
- Withdrawal Force: 3.0 oz (0.83 N) Avg.
- Lead-Free Solderable: Yes
- RoHS Compliant: Yes
- Number of Positions: Up to 150
- Reflowed Solder Lock & Through-Hole Solder Lock options available
- Compatible with SMT and through-hole applications
- Dimensions: Length varies with configuration, typical card length 25.4 mm (1.00"), with spacing options matching industry standards
- Design supports high-density PCB layouts with coplanarity up to 0.15 mm
- Certifications: RoHS compliant, suitable for industrial electronics and high-reliability systems
Buy the Samtec PCMT13402LDRA02SL – Reliable Electronic Connector for Industrial Applications
Order the Samtec PCMT13402LDRA02SL online today to experience a high-quality electronic connector engineered for industrial applications. Featuring a robust design with a liquid crystal polymer insulator, phosphor bronze terminals, and BeCu contacts with Sn or Au plating, it ensures reliable performance across a wide temperature range. Supporting reflowed and through-hole soldering, the connector is RoHS compliant and designed for high-density PCB layouts. Discover fast online ordering and expert support for your manufacturing and repair needs today.
Get Samtec PCMT13402LDRA02SL today—built for high-density PCB connections and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC PCMT13402LDRA02SL?
You can click on the BUY or RFQ button to purchase PCMT13402LDRA02SL from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part PCMT13402LDRA02SL?
You can download the PCMT13402LDRA02SL datasheet or visit the SAMTEC website for support.
Who is the manufacturer of PCMT13402LDRA02SL?
SAMTEC
