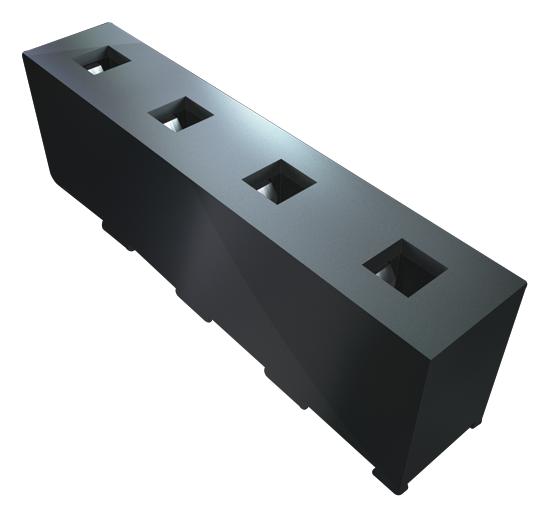

SAMTEC PSS0701TS PCB Connector
The PSS series features compact, high-reliability connectors designed for PCB applications, with insulator made of black LCP, BeCu contact material, and Sn over 50p" Ni plating. These connectors support current ratings with a single pin powered, offering a typical insertion force of 28 oz and withdrawal force of 20 oz, suitable for lead-free soldering and RoHS compliant designs. Mates with multiple series such as FWS and HPM, making them ideal for precise, durable electrical connections in industrial and electronic equipment.
SAMTEC PSS0701TS PCB Connector Specifications:
- Insulator Material: Black LCP
- Contact Material: BeCu
- Plating: Sn over 50p" Ni
- Current Rating: Supported for single pin powered
- Insertion Force: 28 oz (7.78 N) average
- Withdrawal Force: 20 oz (5.56 N) average
- Voltage Rating: Compatible with FWS mated connectors
- Lead-Free Solderable: Yes
- RoHS Compliant: Yes
- Pin Count: 8, 16, 35, or specified per model
- Mount: Surface-mount, coplanarity within 0.006" to 0.008"
- Supported Series: FWS, HFWS, SW, HPM, HPW
- Dimensions vary per length, style, and option, with some non-standard sizes
Buy the Samlec PSS0701TS – Reliable PCB Connector for Industrial Applications
Purchase the Samlec PSS series connector online today and benefit from intelligent PCB connection solutions designed for high-reliability industrial applications. This compact connector features a black LCP insulator, BeCu contacts, and gold-plated finishes for superior durability. It supports lead-free soldering, RoHS compliance, and offers excellent current handling, making it an ideal choice for complex electronic systems. Secure your inventory now and enhance your manufacturing efficiency with our fast, dependable online ordering process.
Order your Samlec Series PSS0701TS connector today and ensure your electronic assemblies have the precise, durable connection they need for industrial and commercial projects.
Frequently Asked Questions
Where can I buy SAMTEC PSS0701TS?
You can click on the BUY or RFQ button to purchase PSS0701TS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part PSS0701TS?
You can download the PSS0701TS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of PSS0701TS?
SAMTEC
