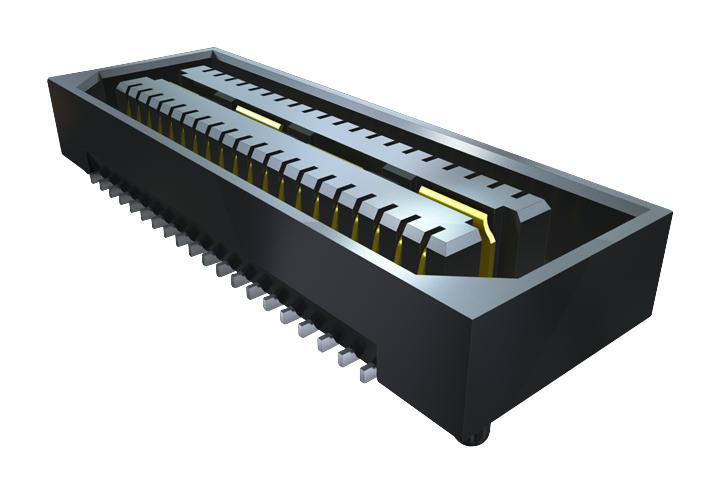

SAMTEC QSE02001FDA High-Speed Fiber Optic Connector
The QSE-020-01-F-D-A is a high-speed connector module designed for fiber optic and electronic applications with excellent signal integrity and RoHS compliance. Made with liquid crystal polymer insulator and phosphor bronze contacts, it features gold or tin plating over nickel, supporting 225 VAC voltage and currents up to 2A per pin. With a stack height of 15mm, it supports multiple configurations, including edge mount and surface mount options, ideal for high-speed data transfer, PCB stacking, and reliable industry use.
SAMTEC QSE02001FDA High-Speed Fiber Optic Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold or Tin over 50 micron Nickel
- Voltage Rating: 225 VAC
- Current Rating: 2A per pin
- Stack Height Options: 15mm, 22mm, and 30mm
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Board Stacking Compatibility: Multiple configurations for applications requiring more than two connectors
- Operating Temperature Range: -55°C to 105°C
- Contact Material: Phosphor Bronze
- Maximum Cycles: 1,000
- Connection Type: SMT and edge mount options
- Gold Plating: 30 µ” (0.76 µm) for high data rate applications
- Max Cycles: 1,000 as per specifications
- Compliance and Certifications: RoHS compliant, Lead-Free
Buy the Samtec QSE-020-01-F-D-A – Reliable High-Speed Connector for Industrial Applications
Purchase the high-quality QSE-020-01-F-D-A connector online today and benefit from rugged construction, RoHS compliance, and exceptional data transfer capabilities. This high-speed fiber optic and electronic connector supports multiple configuration options, including surface mount and edge mount, with stack height flexibility. Designed for industrial and high-performance applications, it offers gold or tin plating over nickel, supporting 225 VAC voltage and 2A current per pin. Reliable, durable, and easy to solder—order now for fast delivery and maximum operational reliability.
Buy Samtec QSE-020-01-F-D-A now and experience unmatched reliability and performance for high-speed industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC QSE02001FDA?
You can click on the BUY or RFQ button to purchase QSE02001FDA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part QSE02001FDA?
You can download the QSE02001FDA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of QSE02001FDA?
SAMTEC
