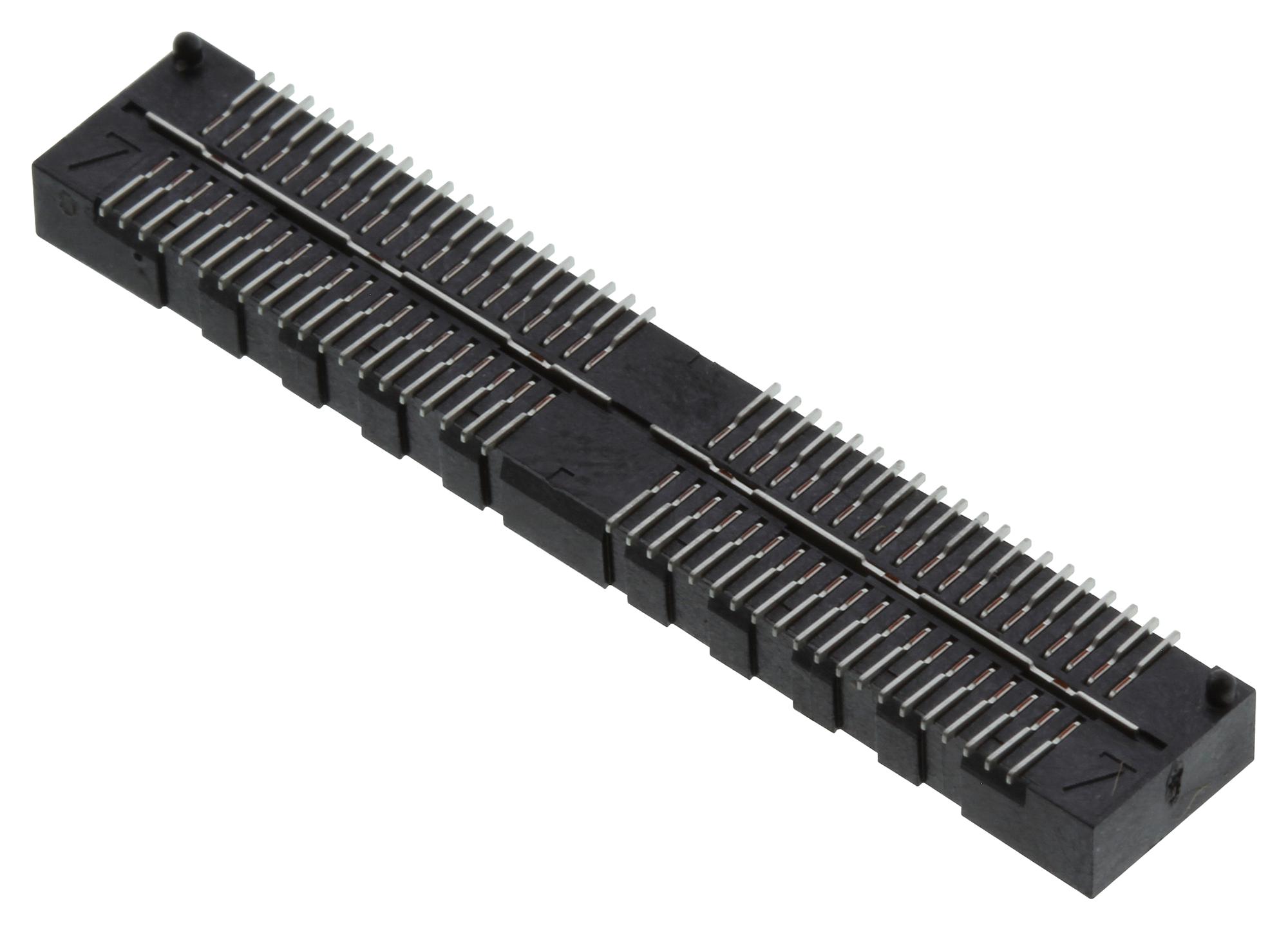

SAMTEC QSE04001FDA High-Speed Board Connector
The QSE Series provides a compact, high-speed board-to-board connector solution suitable for data protocols like 100 GbE, PCI Express, SATA, and InfiniBand. Featuring a liquid crystal polymer insulator, gold or tin plating, and a 2A per pin current rating, it supports operating temperatures from -55°C to 105°C. Designed for SMT applications with coplanarity of 0.10 mm, it offers stack heights from 6 mm to 30 mm, with options for retention, guide posts, and friction lock. Compatible with power or ground planes and flexible power/signal solutions, it ensures reliable, high-speed data transmission in various applications.
SAMTEC QSE04001FDA High-Speed Board Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50 μ" Ni
- Current Rating: 2A per pin
- Operating Temperature Range: -55°C to 105°C
- Voltage Rating: 225 VAC
- Stack Height Options: 6 mm, 8 mm, 19 mm, 16 mm, 25 mm, 14 mm, 30 mm
- Number of Positions: 56 (-DP), 80, 100 per row
- Maximum Cycles: 1
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Board Stacking Compatibility: Multiple connectors per board possible
- Conducts high-speed protocols: +100 GbE, PCI Express, SATA, InfiniBand
- Secure connections: Retention, guide posts, friction lock options
- Supported for flexible power/signal, with options for integral metal ground/ power plane
Buy the Samtec Series QSE: High-Speed Board-to-Board Connector QSE04001FDA
Enhance your high-speed data systems with the Samtec QSE series connector, designed for reliability, maximum signal integrity, and versatile stacking options. Perfect for protocol requirements like 100 GbE and PCI Express, its robust construction features liquid crystal polymer insulators, gold or tin plating, and a 2A current capacity per pin. Easy to mount on SMT boards, it supports operating temperatures from -55°C to 105°C, ensuring durability in demanding environments. Order online now for fast delivery of this dependable power and signal connector.
Get Samtec QSE04001FDA today—built for high-speed data transfer and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC QSE04001FDA?
You can click on the BUY or RFQ button to purchase QSE04001FDA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part QSE04001FDA?
You can download the QSE04001FDA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of QSE04001FDA?
SAMTEC
