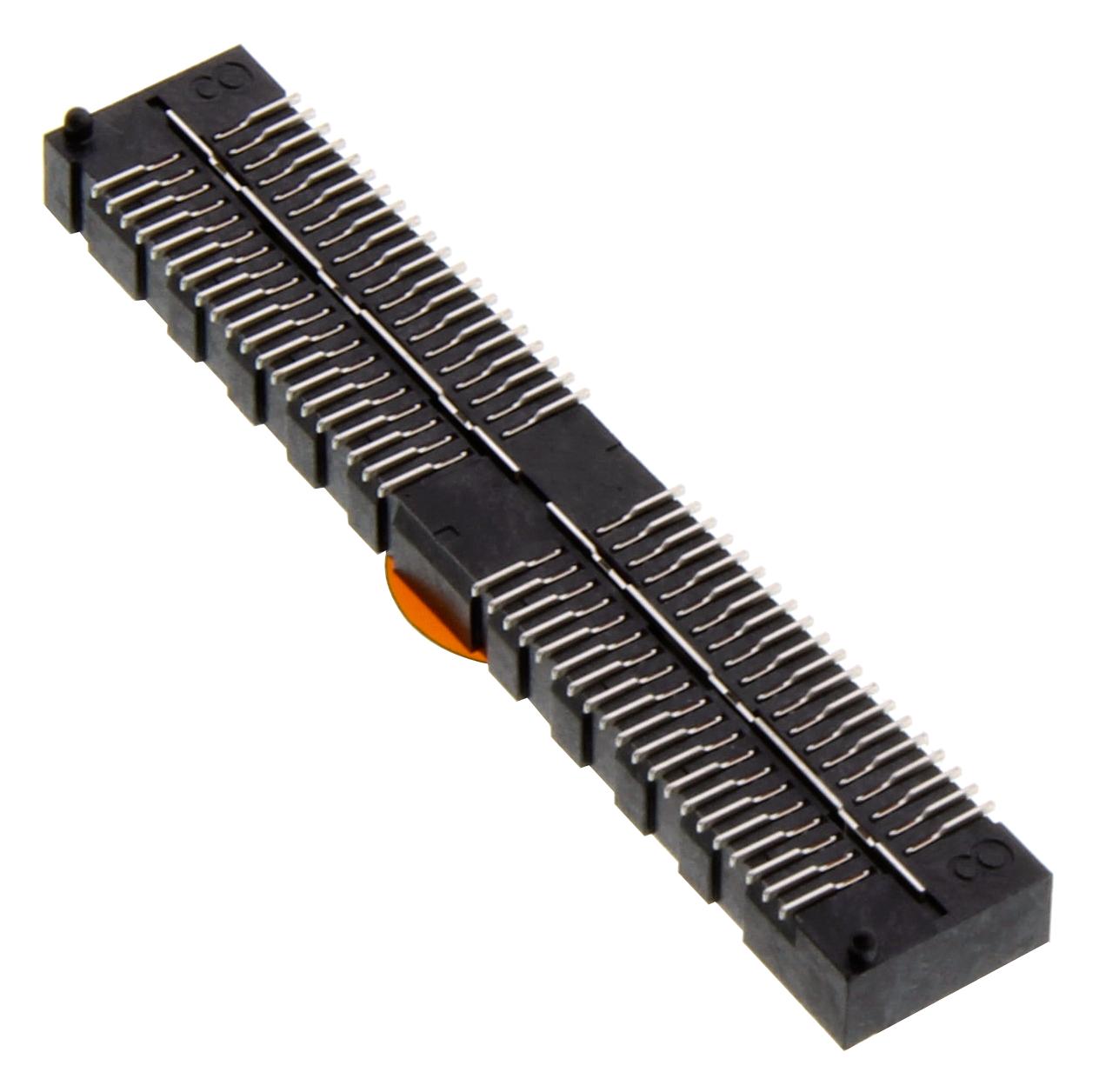

SAMTEC QSE04001LDAKTR High-Speed Ground Plane Strip
The QSE04001LDAKTR is a high-speed, edge-mount ground plane strip designed for data protocols such as 100 GbE, PCI Express, SATA, and InfiniBand. Featuring a liquid crystal polymer insulator, phosphor bronze contacts with gold or tin plating, and compatibility with multiple stack heights, it provides reliable electrical performance with a current rating of 2A per pin. Its RoHS compliance and solderability ensure ease of manufacturing, making it suitable for complex, high-speed PCB applications requiring multiple connectors and power or ground planes.
SAMTEC QSE04001LDAKTR High-Speed Ground Plane Strip Specifications:
- Insulator Material: Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50 μ" Ni
- Current Rating: 2A per pin
- Ground Plane: 23 Apper ground plane
- Operating Temperature Range: -55°C to +105°C
- Voltage Rating: 225 VAC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Stack Height: 15mm, 22mm, 30mm
- Gold Plating: 30 μ" (0.76 μ m) for high data rate applications
- Board Mates: QSE-028-01-F-D-DP-A, QSE-060-01-F-D-A
- Contact Rows: 56, 80, 100 positions per row
- Compatibility with UMP/T/UMPS power/signal solutions
- Cabling and contact options include retention, guide posts, and friction lock
Buy the Samtec Series QSE Ground Plane Strip: QSE04001LDAKTR
Order the Samtec QSE leading high-speed ground plane strip online today and enhance your PCB designs with reliable, high-performance data and power connections. Designed for demanding applications like PCIe, Ethernet, and SATA, this connector offers robust features including RoHS compliance, lead-free solderability, multiple stack heights, and gold or tin plating options. Whether you're building complex multilayer boards or requiring precise grounding, this product ensures optimal electrical performance and durability. Purchase now to streamline your manufacturing process and ensure top-quality connections in your high-speed electronic systems.
Buy Samtec QSE04001LDAKTR now and experience unmatched reliability and performance for high-speed PCB grounding and connection solutions.
Frequently Asked Questions
Where can I buy SAMTEC QSE04001LDAKTR?
You can click on the BUY or RFQ button to purchase QSE04001LDAKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part QSE04001LDAKTR?
You can download the QSE04001LDAKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of QSE04001LDAKTR?
SAMTEC
