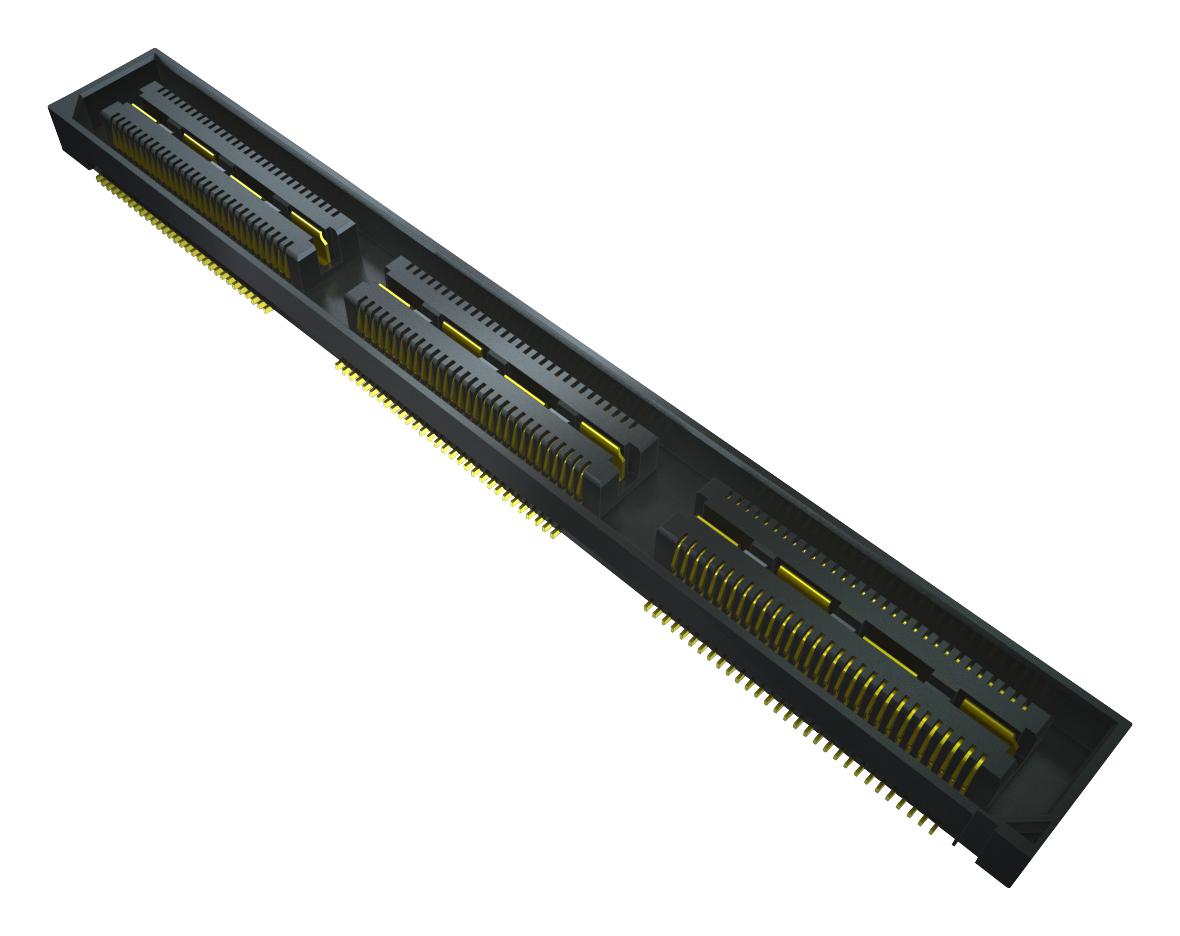

SAMTEC QSH02001FDDPA High-Density PCB Connector
The QSH series connectors are high-performance electrical interconnects designed for industrial and electronic applications requiring reliable signal and power transfer. Featuring a compact design with gold flash or tin over Ni plating, they support multiple contact options including differential and single-ended configurations. These connectors are made of liquid crystal polymer with phosphor bronze contacts rated for 175 VAC. Suitable for PCB mounting, they offer high cycle durability, SMT lead coplanarity, and a temperature range of -55°C to +105°C, making them ideal for demanding industrial environments.
SAMTEC QSH02001FDDPA High-Density PCB Connector Specifications:
- Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Gold flash or Tin over 50 µm Ni
- Current Rating: 25 A per ground plane, 2 A per pin
- Voltage Rating: 175 VAC at a 5 mm stack height
- Operating Temp Range: -55°C to +105°C
- Max Cycles: 10 years of durability under repeated mating
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm (0.004 inches) max
- Number of Pairs: options from 5 to 60 pairs per bank
- Pin Count: supports configurations up to 90 pins per connector
- Stack Height: 5 mm, with tolerance considerations
- Insulator Material: Polyimide film
- Contact Style: Matte Tin or Gold flash, latching options available
- Reel Packaging: Tape & Reel for automated PCB assembly
- Certifications: Non-returnable, RoHS compliant
Buy the Samtec QSH02001FDDPA – Reliable High-Density Connectors for Industrial Applications
Secure your electronic assembly with the QSH series connectors from Samtec, offering robust construction, high current capacity, and excellent environmental resistance. Designed for PCB mounting in industrial environments, these connectors provide reliable electrical performance with gold or tin plating options and are rated for 175 VAC. Their compatibility with SMT assembly, high cycle durability, and precise coplanarity ensure seamless integration with automated manufacturing processes. Purchase online now to enhance your electronic projects with premium interconnect solutions built for long-lasting performance.
Get Samtec QSH02001FDDPA today—built for high durability and reliable signal integrity in industrial electronics.
Frequently Asked Questions
Where can I buy SAMTEC QSH02001FDDPA?
You can click on the BUY or RFQ button to purchase QSH02001FDDPA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part QSH02001FDDPA?
You can download the QSH02001FDDPA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of QSH02001FDDPA?
SAMTEC
