SAMTEC QSH03001CDA High-Density Connector
The QSH series features high-performance, small-pitch connectors designed for precise signal connections and board stacking applications. Made with Phosphor Bronze contact material and gold or tin plating, these connectors support operating temperatures up to 140°C and voltage ratings of 175 VAC, with a maximum cycle life of 100 mating cycles. The modules use Liquid Crystal Polymer insulators, are lead-free solderable, and compatible with SMT processes. Designed for reliable, compact, and durable electronic interconnections in high-density environments.
SAMTEC QSH03001CDA High-Density Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 μm Ni
- Operating Temp Range: -55°C to +140°C
- Voltage Rating: 175 VAC (5 mm stack height)
- Max Cycles: 100
- Lead-Free Solderable: Yes
- Insulator Material: Liquid Crystal Polymer
- Board Mates: NO. OF PAIRS 20-60, Pattern options include -020, -040, -060, -090
- Lead Style: Polyimide film lead with Matte Tin or Gold flash on contact
- Physical Dimensions: Pin pitch 0.75 mm to 1.27 mm, DIA 0.325 inch, 0.600 inch etc.
- Current per Pin: 2A, Ground Plane: 25A per ground plane
- Max height: 5 mm (stack height), with full reel availability for manufacturing
- Contact Reliability: Passes 10-year liquid crystal polymer manufacturing testing

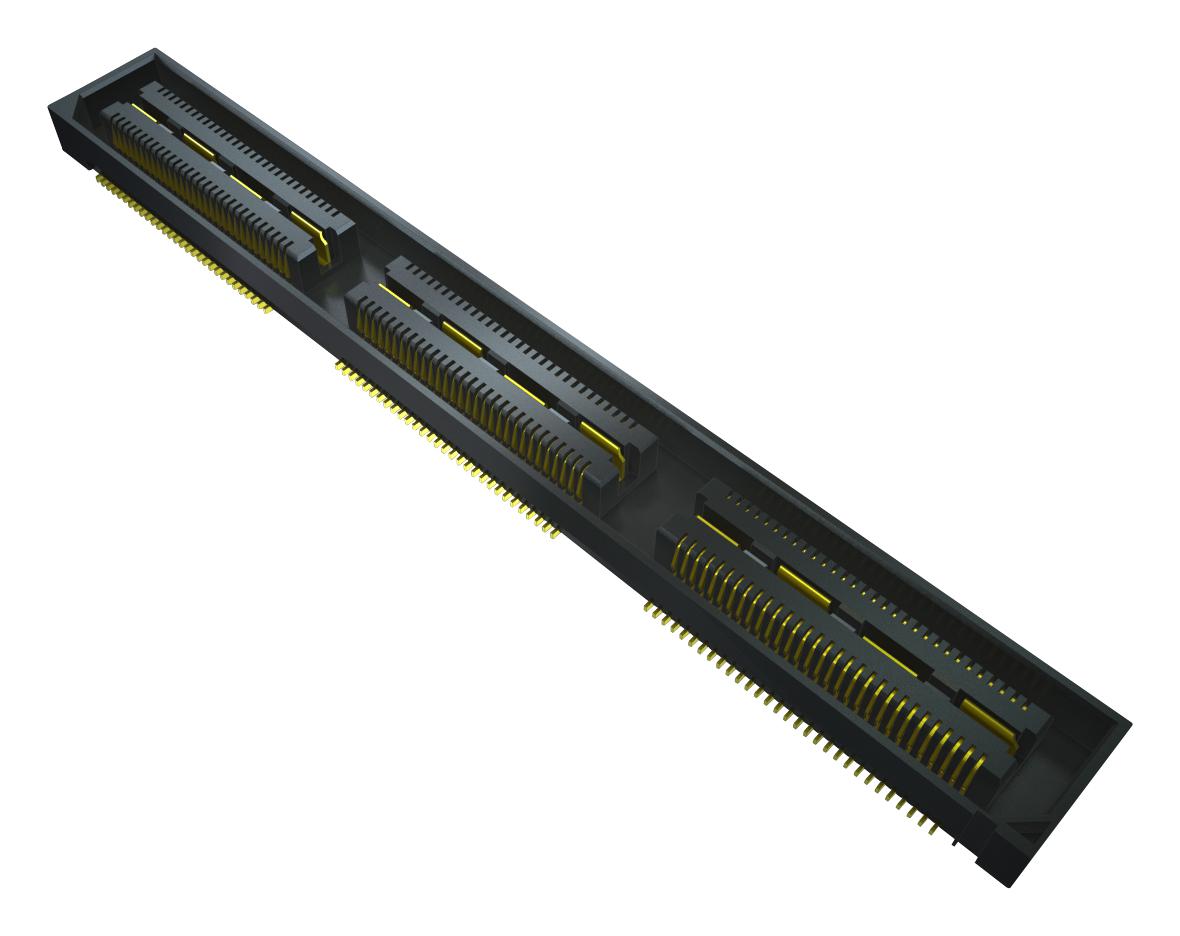

Buy the Buy Samtec QSH Series Part Number QSH03001CDA Online
Purchase the Samtec QSH series connector online today to ensure reliable, compact, and high-performance interconnections for your electronic assemblies. Designed with durable Phosphor Bronze contacts and gold or tin plating, these connectors support high-temperature environments up to 140°C and operate effectively at 175 VAC ratings. With lead-free, SMT-compatible, and moisture-resistant features, the QSH series provides excellent durability and signal integrity, making it a perfect choice for high-density PCB applications, minimizing space while maximizing performance—order now and benefit from fast, secure delivery.
Buy Samtec QSH03001CDA now and experience unmatched reliability and performance in your electronic interconnect solutions with high-density board stacking connectors.
