SAMTEC QSH03001LDA High-Speed Socket Strip
The QSH-030-01-L-D-A is a high-speed, 60-pole two-row socket strip with a 0.50mm pitch, featuring gold-plated phosphor bronze contacts and an insulator made of liquid crystal polymer. This single-ended ground plane socket is compatible with several connector series, including HQCD, QTH, QTH-EM, and QTH-RA. It supports a current of 2A and a voltage of 175VAC, is lead-free and solderable, with adjustable stack heights from 5.00mm to 30.00mm. Designed for industrial applications requiring reliable high-speed connections and precise alignment.
SAMTEC QSH03001LDA High-Speed Socket Strip Specifications:
- Number of Poles: 60
- Pitch: 0.50mm
- Contact Material: Phosphor Bronze
- Plating: 10-micron (0.25-micron) Gold over Ni
- Insulator Material: Liquid Crystal Polymer
- Current Rating: 2A per pin
- Voltage Rating: 175VAC
- Stack Height: Adjustable from 5.00mm to 30.00mm
- Lead-Free: Yes
- Solderable: Yes
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes

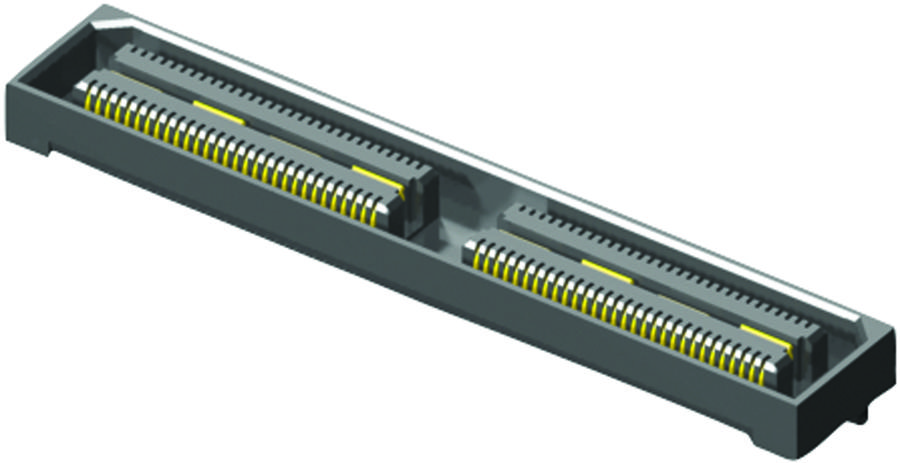

Buy the Samtec Series QSH Connectors: QSH-030-01-L-D-A
Discover the reliable high-speed connections of the Samtec Series QSH socket strip, featuring 60-poles with 0.50mm pitch, gold-plated phosphor bronze contacts, and liquid crystal polymer insulator. This versatile connector supports adjustable stack heights from 5mm to 30mm, making it ideal for industrial, high-speed PCB applications requiring precise, durable, and lead-free connections. Easy to solder and RoHS compliant, it ensures long-lasting performance and efficient assembly for demanding electronic systems.
Order your Samtec Series QSH-030-01-L-D-A high-speed socket strip today and ensure reliable performance for your industrial PCB projects.
Frequently Asked Questions
Where can I buy SAMTEC QSH03001LDA?
You can click on the BUY or RFQ button to purchase QSH03001LDA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part QSH03001LDA?
You can download the QSH03001LDA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of QSH03001LDA?
SAMTEC
