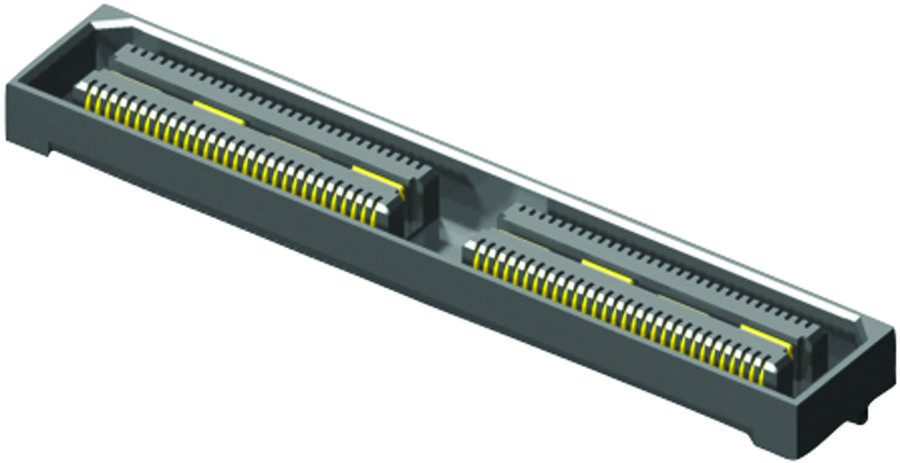

SAMTEC QSH06001LDA High-Speed Ground Plane Socket Strip
The QSH-060-01-L-D-A is a high-speed ground plane socket strip with 120 poles in two rows, offering reliable power and ground connections for industrial applications. It features gold-plated phosphor bronze contacts measuring 0.25 inches for durability and excellent electrical conductivity. The socket uses a liquid crystal polymer insulator and is compatible with HQCD, QTH, QTH-EM, and QTH-RA series connectors. Rated for 2A current and 175VAC voltage, it is lead-free, solderable, and supports stack heights from 5.00mm to 30.00mm, making it suitable for high-density electronic systems and power distribution modules.
SAMTEC QSH06001LDA High-Speed Ground Plane Socket Strip Specifications:
- Pole Count: 120 poles in two rows
- Pitch: 0.50mm
- Contact Material: Phosphor Bronze
- Contact Plating: Au over 50µ
- Insulator Material: Liquid Crystal Polymer
- Contact Rating: 2A
- Voltage Rating: 175VAC
- Stack Height: 5.00mm to 30.00mm
- Lead-Free: Yes
- Solderable: Yes
- RoHS Compliant: Yes
- Operating Temperature Range: -55°C to +125°C
- Compatible Series: HQCD, QTH, QTH-EM, QTH-RA
- Maximum Cycles: 1
Buy the Buy Samtec QSH-060-01-L-D-A Part Number QSH06001LDA Online
Secure your high-density power and ground connection needs by purchasing the Samtec QSH-060-01-L-D-A online. This socket strip offers 120 poles with gold-plated phosphor bronze contacts for durability and excellent conductivity. Its compatibility with multiple series and stack height options from 5mm to 30mm make it versatile for industrial applications. Lead-free, solderable, and RoHS compliant, it ensures safety and environmental standards. Enjoy fast delivery and technical support when you buy this essential component for your electronic assemblies.
Buy Samtec QSH-060-01-L-D-A now and experience high-speed reliability and power distribution efficiency in your electronic systems.
Frequently Asked Questions
Where can I buy SAMTEC QSH06001LDA?
You can click on the BUY or RFQ button to purchase QSH06001LDA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part QSH06001LDA?
You can download the QSH06001LDA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of QSH06001LDA?
SAMTEC
