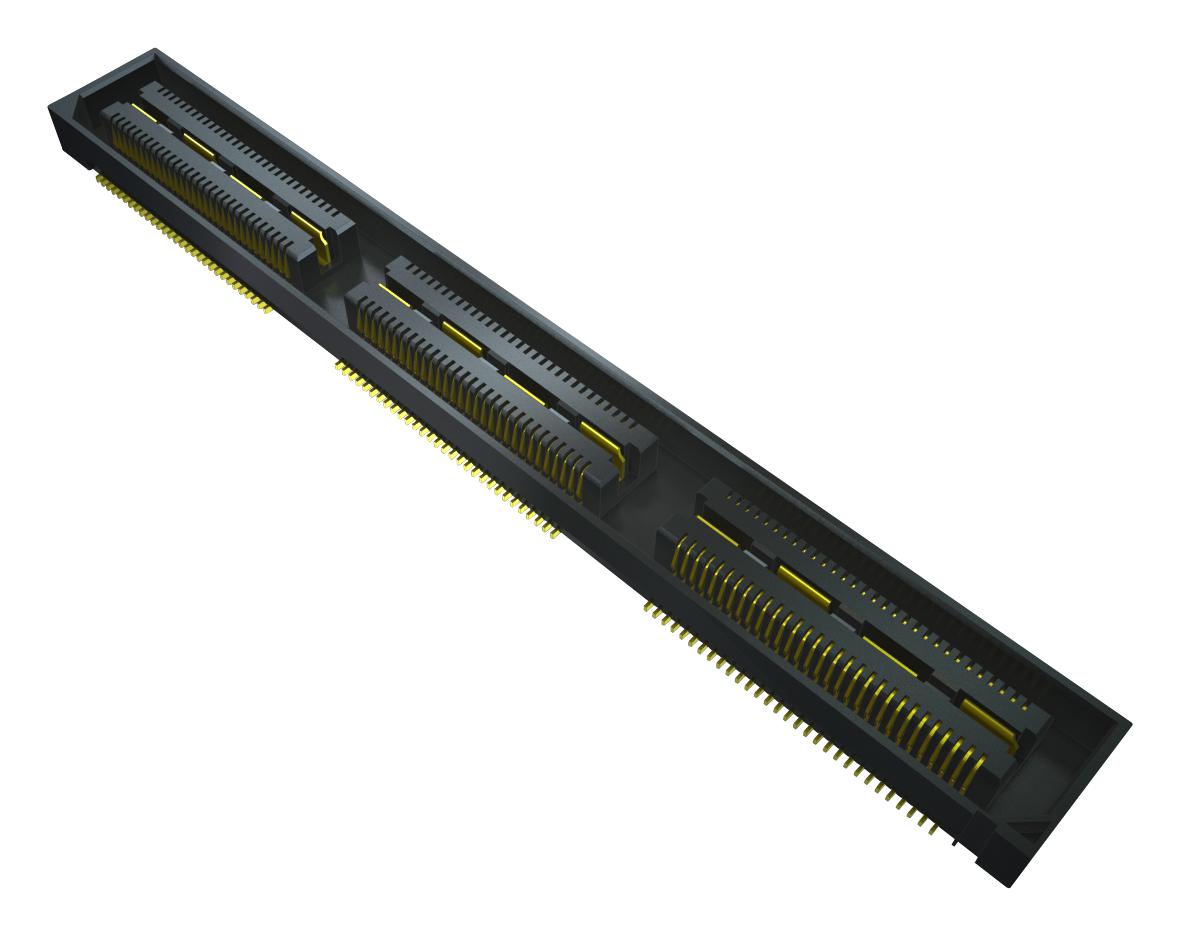

SAMTEC QSH06001LDAK High-Speed Ground Plane Socket
The SAMTEC QSH series is a high-performance ground plane socket designed for demanding applications requiring high-speed data transfer and reliable power delivery. Featuring a liquid crystal polymer insulator and phosphor bronze contacts with gold or tin plating, this connector provides excellent signal integrity and current carrying capacity. It is ideal for use in industrial automation, medical equipment, and telecommunications infrastructure. The QSH-060-01-L-D-A-K variant specifically offers a 60-pin configuration with a single-ended or differential option, making it versatile for various board designs. Its compatibility with UMPT/UMPS allows for flexible power/signal solutions, and its extended life product designation ensures long-term reliability.
SAMTEC QSH06001LDAK High-Speed Ground Plane Socket Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 µ" Ni
- Current Rating (per pin): 2 A
- Current Rating (Ground Plane): 25 A
- Operating Temp Range: -55 °C to +125 °C
- Voltage Rating: 175 VAC (5 mm Stack Height)
- Max Cycles: 100
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: (0.10 mm) .004" max
- Mating Height: QTH
- Pins per Row: 60
- Positions per Row: 80, 120, 150
- Stack Height Options: 15 mm, 22 mm, 30 mm
- Gold Plating Option: 30 µ" (0.76 µm)
- Contact Area Gold Plating: 50 µ" (1.27 µm) min
- Ground Plane Plating: 10 µ" (0.25 µm) min
- Solder Tail Plating: Matte Tin
