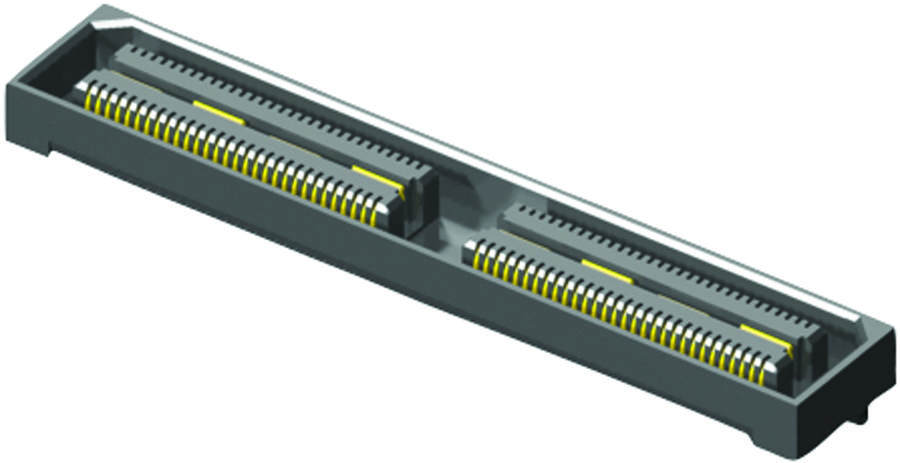

SAMTEC QSH06001LDAKTR High-Density Connector
The QSH series is a high-performance, compact, and reliable connector ideal for dense electronic applications requiring high pin counts and precise signal transmission. It features phosphor bronze contact material with gold or tin over nickel plating, ensuring excellent electrical conductivity and durability. Designed with a polyimide insulator and matte tin finish, it supports operating temperatures up to 140°C and voltage ratings of 175 VAC at a 5 mm stack height. Suitable for SMT applications, it offers easy board mounting, is lead-free, and supports up to 100 mating cycles for long-term use.
SAMTEC QSH06001LDAKTR High-Density Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 μm Ni
- Operating Temp Range: up to 140°C
- Voltage Rating: 175 VAC at 5 mm stack height
- Max Cycles: 100 mating cycles
- Board Mates: 4 | 10 pairs/tape & reel
- Lead-Free Solderable: Yes
- Insulator Material: Liquid Crystal Polymer
- Dimensions: Pin pitch 0.0197" (0.50 mm); Diameter 0.275" (7.00 mm)
- Temperature Range: -55°C to +140°C
- Stack Height: 5 mm
- Number of Pairs: 20 to 60 pairs per bank
- Board Stacking: Suitable for applications requiring more than two connectors
- Certifications: RoHS compliant
- Contact Options: Gold flash or matte tin finish
- Application: Electronic PCB interconnects, high-speed data transmission, compact device assembly
Buy the Buy Samtec QSH Series Part Number QSH06001LDAKTR Online
Purchase the Samtec QSH Series connector online today to ensure reliable high-performance connections for your electronic projects. Designed with precision and durability, this connector supports 20 to 60 pairs, features lead-free solderability, and withstands up to 100 mating cycles. Its polyimide insulator and gold or tin plating provide excellent electrical conductivity and corrosion resistance. Ideal for PCB applications requiring a compact form factor, it guarantees seamless installation and long-term performance, making it a perfect choice for demanding electronic and industrial systems.
Buy Samtec QSH06001LDAKTR now and experience unmatched durability and electrical performance in dense electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC QSH06001LDAKTR?
You can click on the BUY or RFQ button to purchase QSH06001LDAKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part QSH06001LDAKTR?
You can download the QSH06001LDAKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of QSH06001LDAKTR?
SAMTEC
