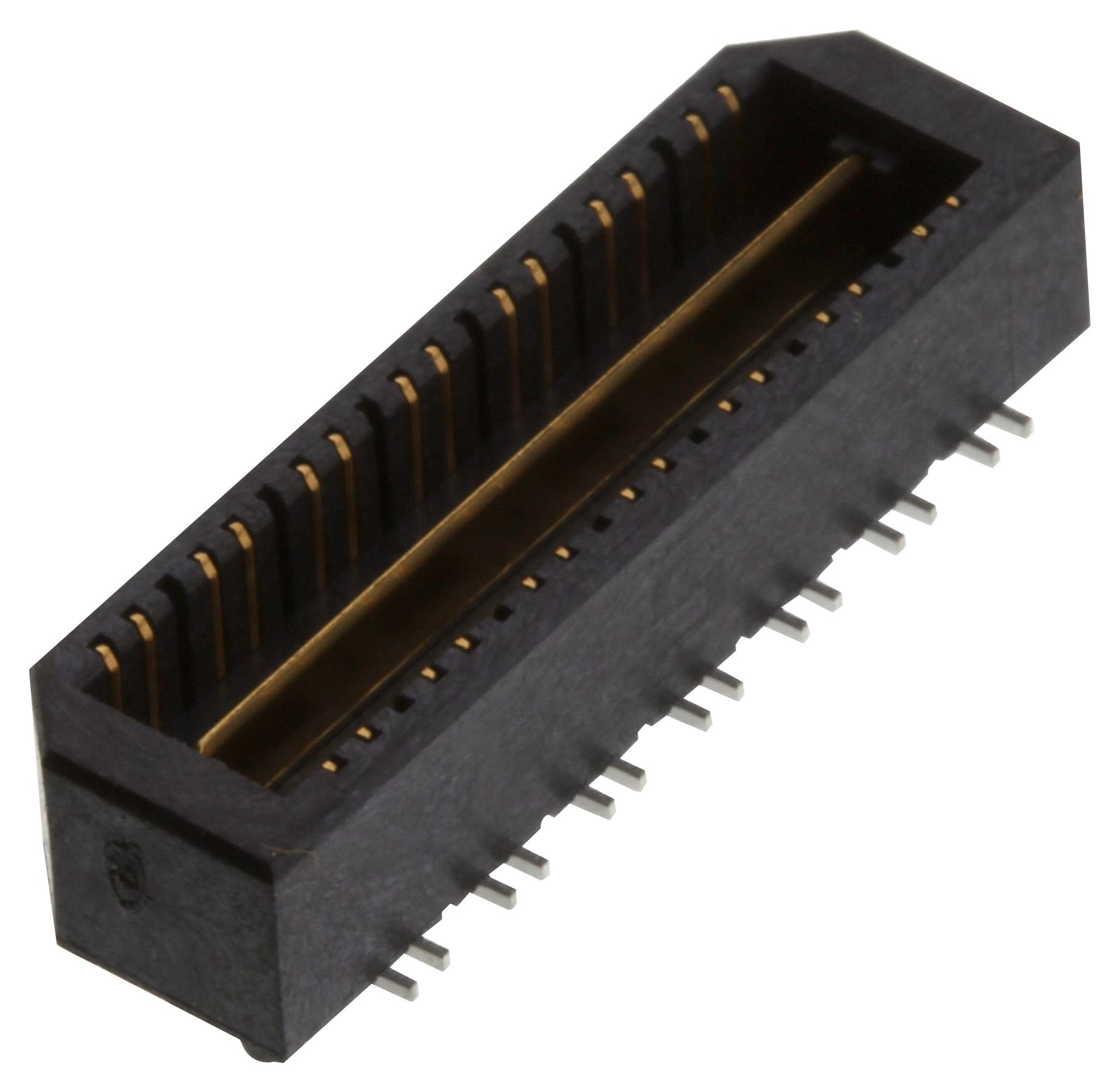

SAMTEC QTE01401LDDPA High-Speed Ground Plane Header
The SAMTEC QTE series high-speed ground plane header is engineered for demanding applications requiring robust power and ground connections. It incorporates an integral metal plane for enhanced signal integrity and offers standard stack heights from 5mm to 25mm, accommodating various board designs. Compatible with QSE and Cable Mates, this header supports high-speed data transmission and is RoHS compliant. Available in various configurations, including options for lead-free solderability and edge mount designs, the QTE series provides a versatile solution for a wide range of industrial applications.
SAMTEC QTE01401LDDPA High-Speed Ground Plane Header Specifications:
- Board Mates: QSE
- Cable Mates: EQCD, EQDP
- Insulator Material: Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50 µ" (1.27 µm) Ni
- Current Rating (Contact): 2 A per pin (2 pins powered)
- Current Rating (Ground Plane): 23 A per ground plane (1 ground plane powered)
- Operating Temp Range: -55 °C to +125 °C
- Voltage Rating: 225 VAC mated with QSE
- Max Cycles: 100
- RoHS Compliant: Yes
- SMT Lead Coplanarity: (0.10 mm) .004" max (020-060)
- Lead–Free Solderable: Yes
- Lead Style: –D = (7.00 mm) Polyimide .275" DIA
- Number of Pairs: 14 pairs per bank
- Processing Pins per Row: 40 total pins per bank
- Stack Height: 5 mm to 25 mm
- Mated Stack Height: 5 mm
- Data Rate: 14G b p s 28G b p s
- File No.: E111594
- A Height: 01 (20.00) .7875
- B Height: 02 (0.80) (0.20) (3.81 µm)
- C Height: (5.97) (7.11) .235 .280
- D Height: 03 (10.27) .404 (11.00) .433
- E Height: 04 (15.25) .600 (16.00) .630
- F Height: 05 (18.26) .718 (19.00) .748
- G Height: 07 (24.24) .954 (25.00) .984
- H Height: 09 (13.26) .522 (14.00) .551
